Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

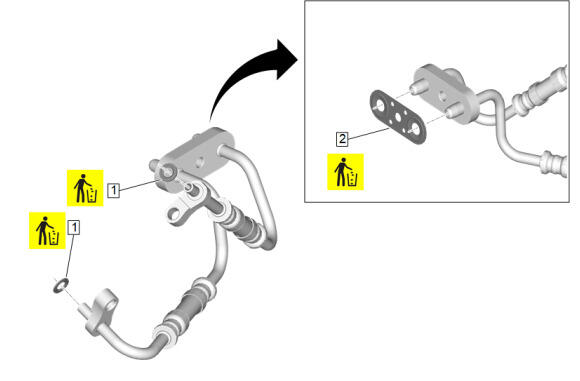

Transmission Fluid Cooler Seal (2) - Install NEW
- Transmission Fluid Cooler Pipe Seal (1) - Install NEW [2x]
- NOTE:
Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.

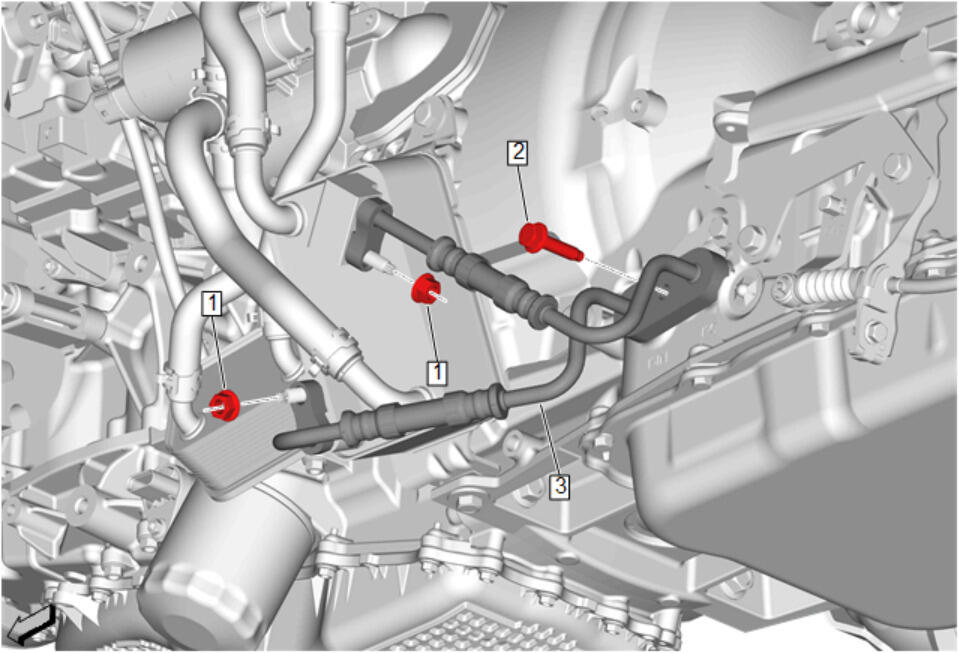

Transmission Fluid Cooler Inlet and Outlet Pipe (3) - Install
- Transmission Fluid Cooler Pipe Bolt (2) - Install and tighten to 22 N.m (16 lb ft)
- Transmission Fluid Cooler Pipe Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
- Lower the vehicle.
- Check the transmission fluid level. Transmission Fluid Level and Condition Check
- Inspect for transmission fluid leaks. Fluid Leak Diagnosis
CAUTION:
Refer to Fastener Caution .
