Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle

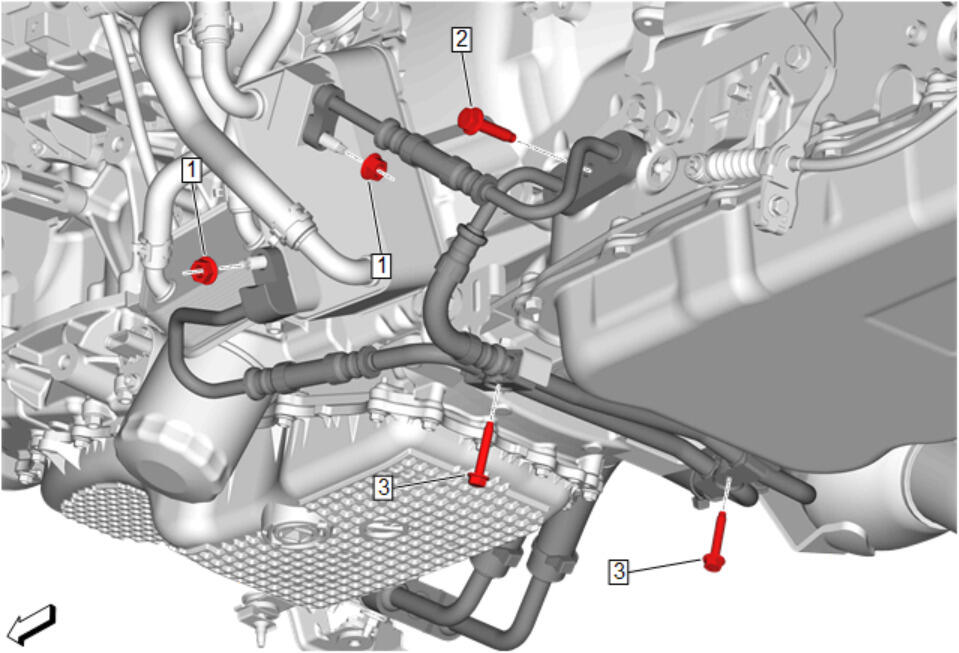

Transmission Fluid Cooler Pipe Nut (1) - Remove [2x]
- Transmission Fluid Cooler Pipe Bolt (2) - Remove
- Transmission Fluid Cooler Pipe Clip Bolt (3) - Remove [2x]

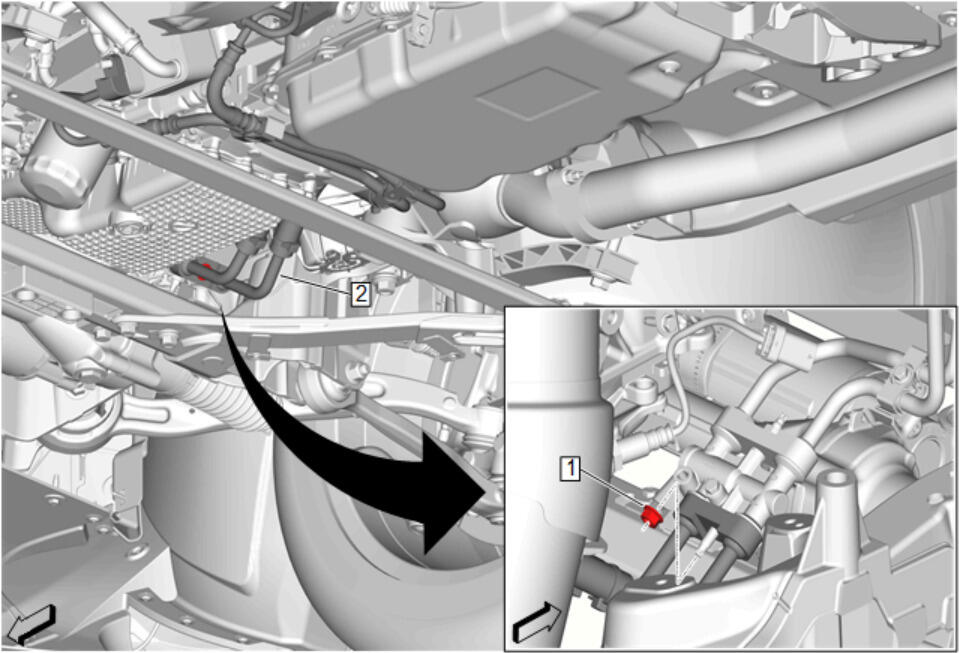

Transmission Fluid Auxiliary Cooler Pipe Bracket Nut (1) - Remove

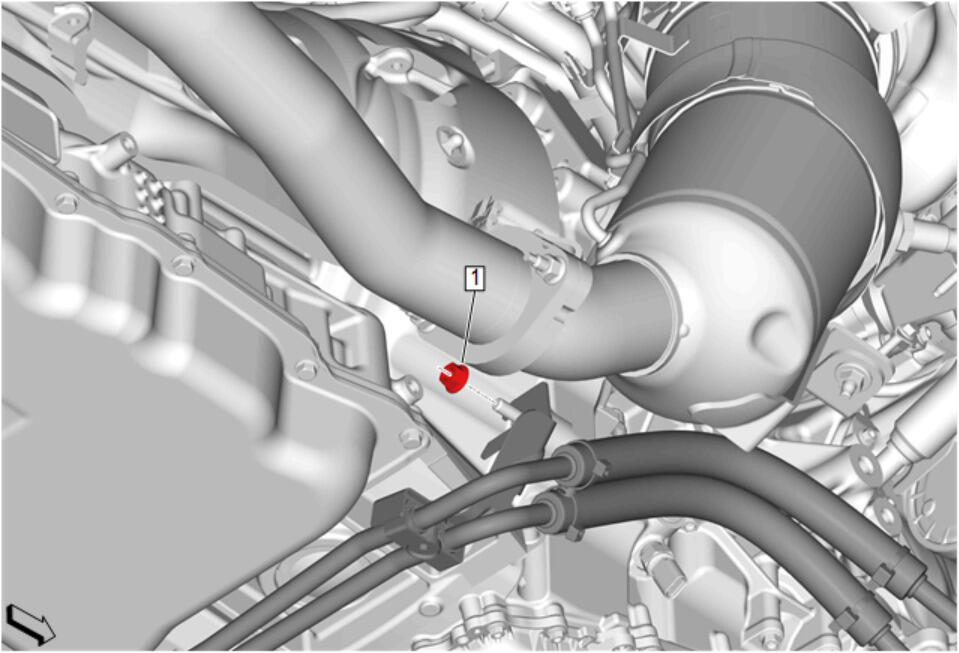

Transmission Fluid Cooler Pipe Nut (1) - Remove
- Transmission Fluid Cooler Inlet and Outlet Pipe (2) - Remove

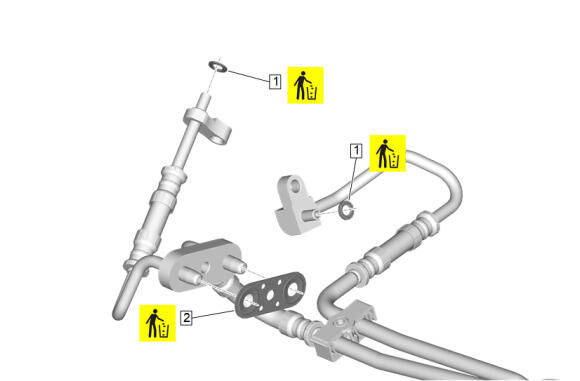

Transmission Fluid Cooler Pipe Seal (1) - Remove and DISCARD [2x]
- Transmission Fluid Cooler Seal (2) - Remove and DISCARD

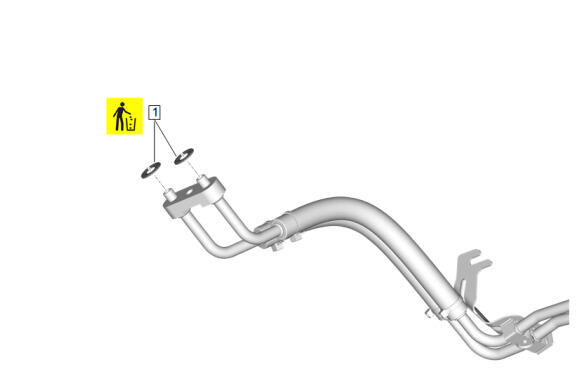

Transmission Fluid Cooler Pipe Seal (1) - Remove and DISCARD [2x]
NOTE:
Cap the fittings and plug the holes when removing the transmission fluid cooler pipes.
