Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

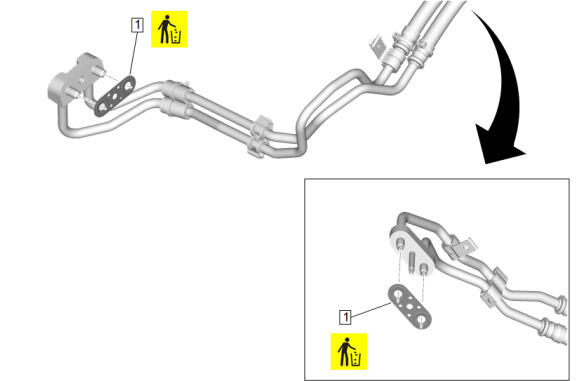

Transmission Fluid Cooler Seal (1) - Install NEW [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.

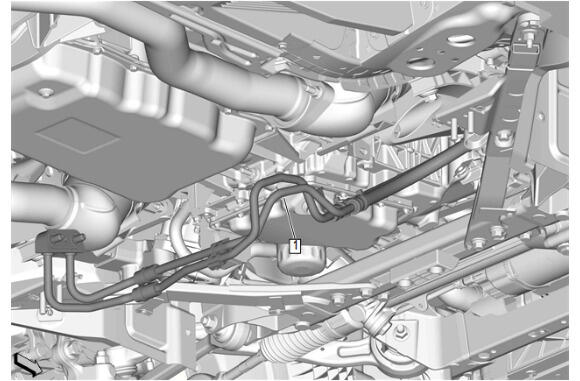

Maneuver the transmission fluid cooler inlet and outlet pipe (1) as necessary to install in the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Transmission Fluid Cooler Pipe Nut (1) - Install and tighten to 22 N.m (16 lb ft)
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

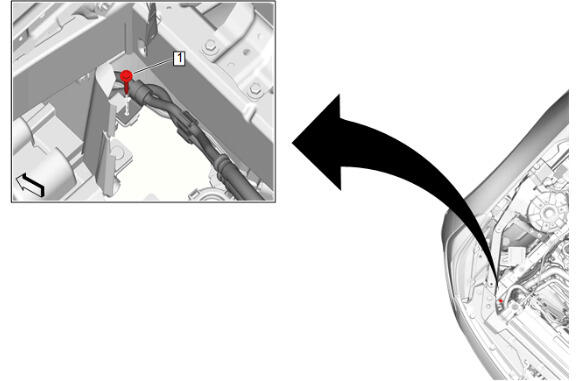

Transmission Fluid Cooler Pipe Bracket Bolt (1) - Install and tighten to 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

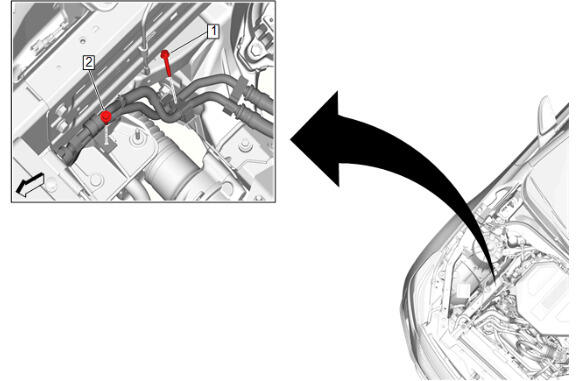

Transmission Fluid Cooler Pipe Bracket Bolt (2) - Install and tighten to 9 N.m (80 lb in)
Transmission Fluid Cooler Pipe Clip Bolt (1) - Install and tighten to 9 N.m (80 lb in)
Raise the vehicle.
Courtesy of GENERAL MOTORS COMPANY

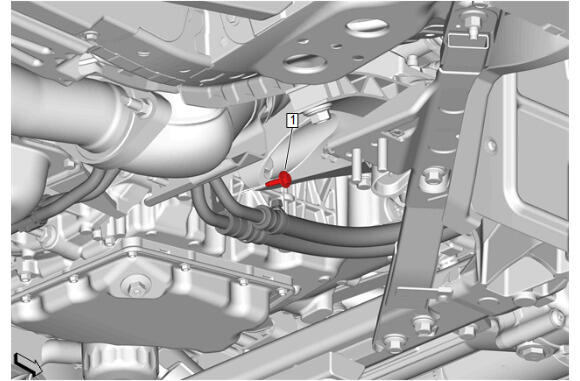

Transmission Fluid Cooler Pipe Bracket Bolt (1) - Install and tighten to 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

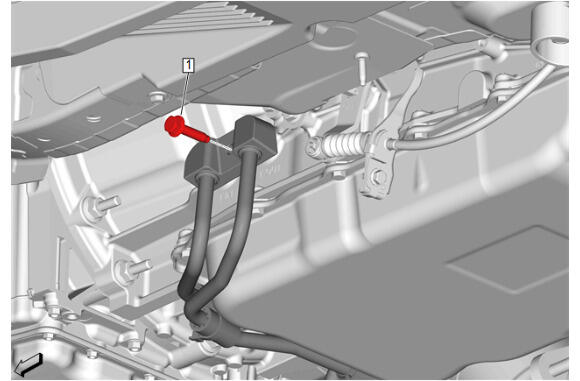

Transmission Fluid Cooler Pipe Bolt (1) - Install and tighten to 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Brace (2) - Install - Catalytic Converter Brace Replacement (LGY)
Courtesy of GENERAL MOTORS COMPANY

Front Crossmember Brace (2) - Install - Front Crossmember Brace Replacement
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct (1) - Install - Intake Air Duct Replacement
Check the transmission fluid level. Transmission Fluid Level and Condition Check
Inspect for transmission fluid leaks. Fluid Leak Diagnosis
