Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

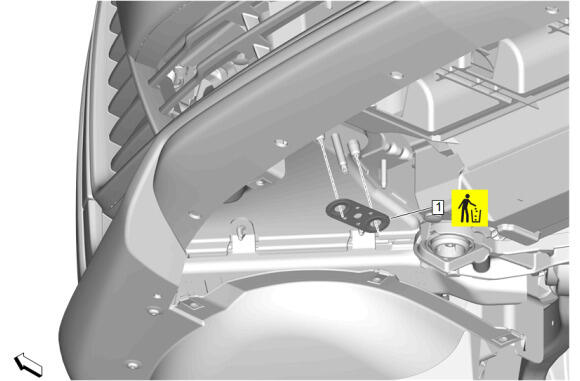

Transmission Fluid Cooler Seal (1) - Install NEW

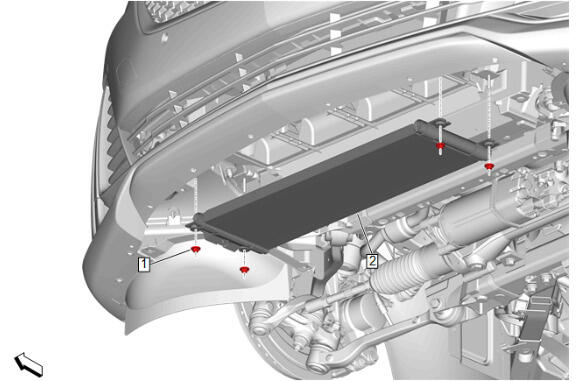

Transmission Fluid Auxiliary Cooler (2) - Install
- Transmission Fluid Auxiliary Cooler Bracket Nut (1) - Install and tighten [4x] 9 N.m (80 lb in)
Transmission Fluid Cooler Pipe Nut (1) - Install and tighten - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGY, RWD) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGY, AWD)
Front Bumper Fascia Center Air Deflector (1) - Install - Front Bumper Fascia Center Air Deflector Replacement
- Lower the vehicle.
- Check the transmission fluid level. Transmission Fluid Level and Condition Check
- Inspect for transmission fluid leaks. Fluid Leak Diagnosis
CAUTION:
Refer to Fastener Caution .
