Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

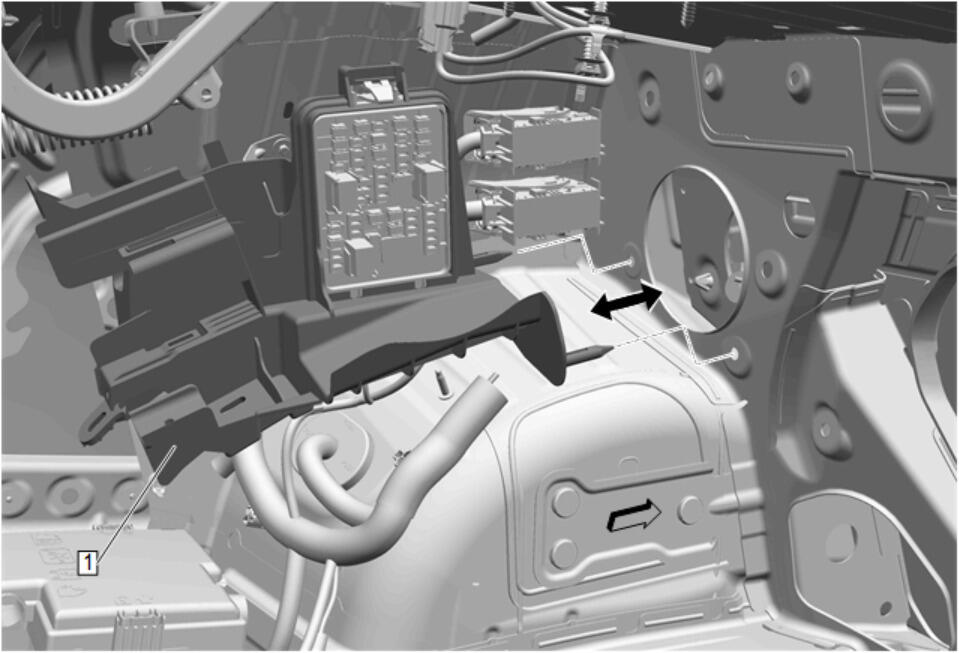

GM5312798Courtesy of GENERAL MOTORS COMPANY
  1. Rear Body Fuse Block Bracket (1) - Install

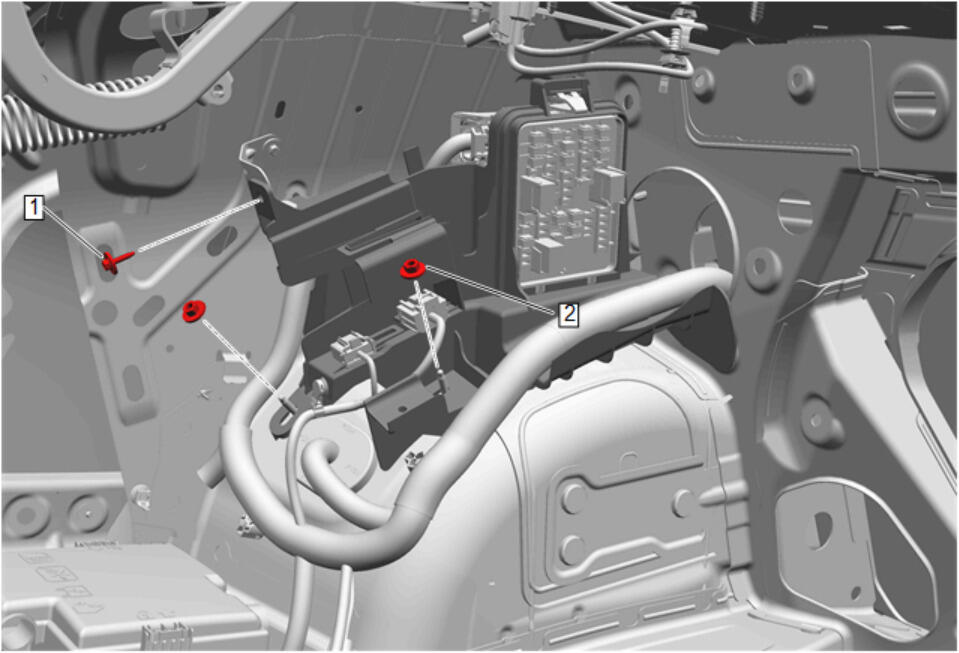

  2. GM5312797Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Body Fuse Block Bracket Bolt (1) - Install and tighten to 2.5 N.m (22 lb in)

  3. Body Wiring Harness Junction Block Bracket Nut (2) - Install and tighten [2x] 6.5 N.m (58 lb in)
  4. Connect the wiring harness retainers to the bracket.
  5. Connect the electrical connectors to the fuse block.
  6. Electronic Suspension Control Module - Install - Suspension Control Module Replacement
  7. Transfer Case Control Module - Install - Transfer Case Control Module Replacement
  8. Rear Compartment Side Trim Replacement - Left Side - Install - Rear Compartment Side Trim Replacement - Left Side
