Body Wiring Harness Junction Block Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection . Rear Body Fuse Block Bracket Replacement

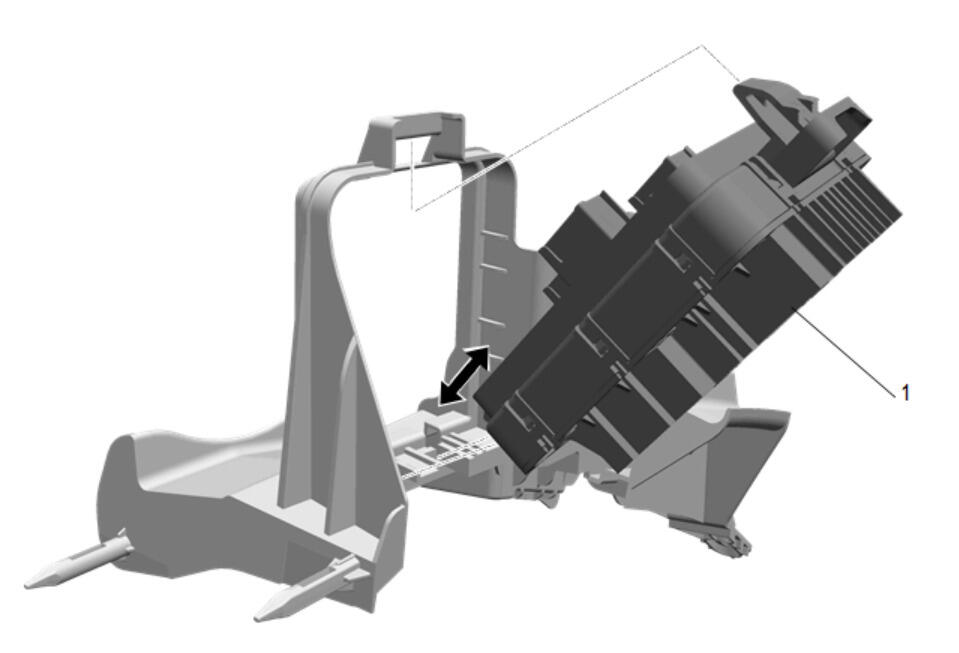

1	Body Wiring Harness Junction Block Procedure Disconnect all electrical connectors. Release the top retainer, tip the fuse block forward and down and pull the fuse block up out of the rear body fuse block bracket. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection .
Rear Body Fuse Block Bracket Replacement

Body Wiring Harness Junction Block

Procedure

Disconnect all electrical connectors.
Release the top retainer, tip the fuse block forward and down and pull the fuse block up out of the rear body fuse block bracket.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .
