Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Make sure the collar (3) is properly aligned with the battery positive post.

Using the locator pins (1), install the battery distribution fuse block (2) to the battery positive post.
Courtesy of GENERAL MOTORS COMPANY

Engage the 2 retaining tabs to the battery.

CAUTION:

Refer to Fastener Caution

Battery Positive Post Clamp Nut (1) - Tighten to 4.5 N.m (40 lb in)
Courtesy of GENERAL MOTORS COMPANY

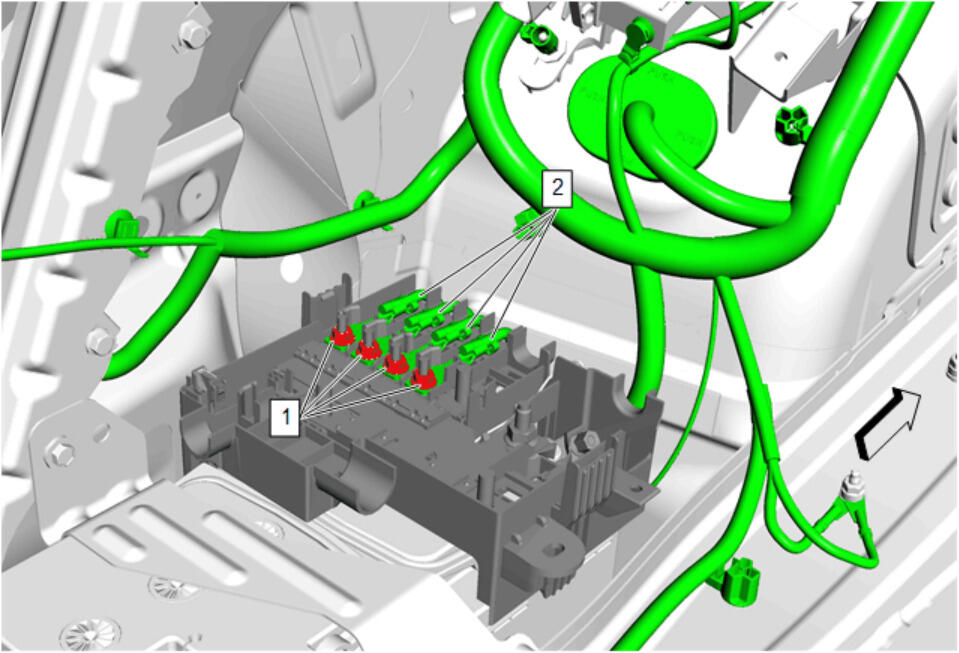

Body Harness Terminal (2) - Install [4x]
Body Harness Terminal Nut (1) - Install and tighten [4x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

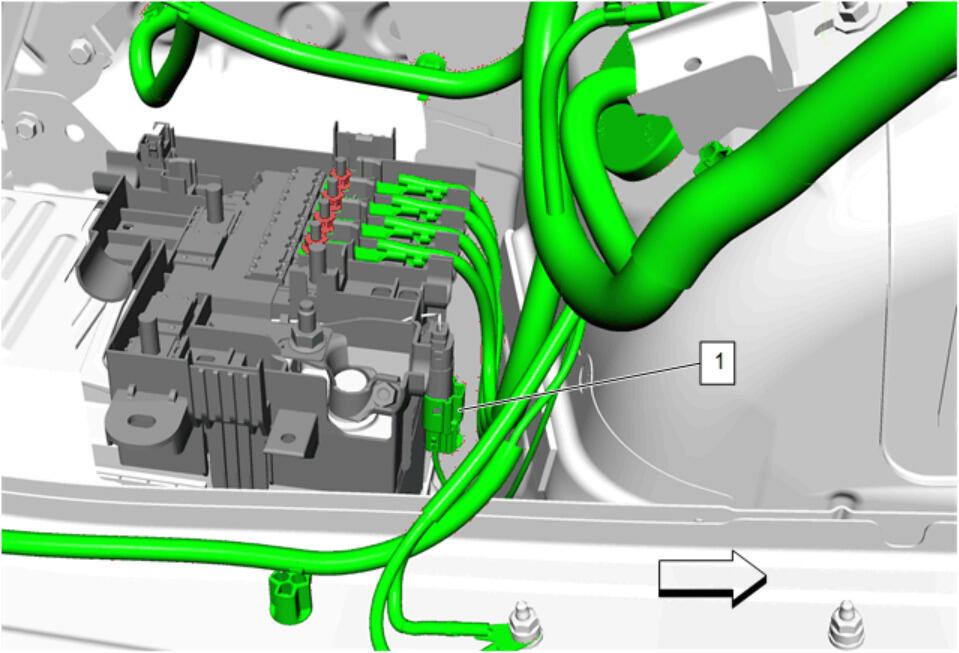

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (3) - Install [2x]
Battery Positive Cable Nut (1) - Install and tighten [2x] 15 N.m (11 lb ft)
Retainer (2) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

Rear Body Fuse Block Cover (2) - Install - Rear Body Fuse Block Cover Replacement
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
