Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
-
Courtesy of GENERAL MOTORS COMPANY

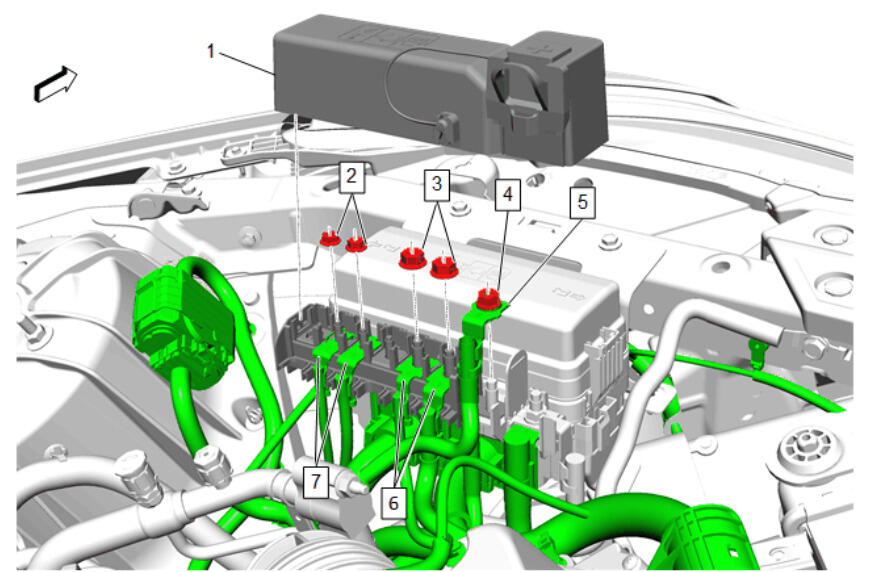

Battery Distribution Engine Compartment Fuse Block Cover (1) - Remove
- Battery Positive Cable Nut (4) - Remove
- Battery Positive Cable (5) - Remove
- Engine Wiring Harness Terminal Nut (3) - Remove [2x]
- Engine Wiring Harness (6) - Remove [2x]
- Forward Lamp Wiring Harness Terminal Nut (2) - Remove [2x]
- Forward Lamp Wiring Harness (7) - Remove [2x]
Retaining Tab (1) - Disengage [2x]
- Battery Distribution Engine Compartment Fuse Block (2) - Remove
