Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

Starter (3) - Install
Starter Bolt (2) - Install and tighten [2x] 58 N.m (43 lb ft)
Starter Stud (1) - Install and Tighten 58 N.m (43 lb ft)

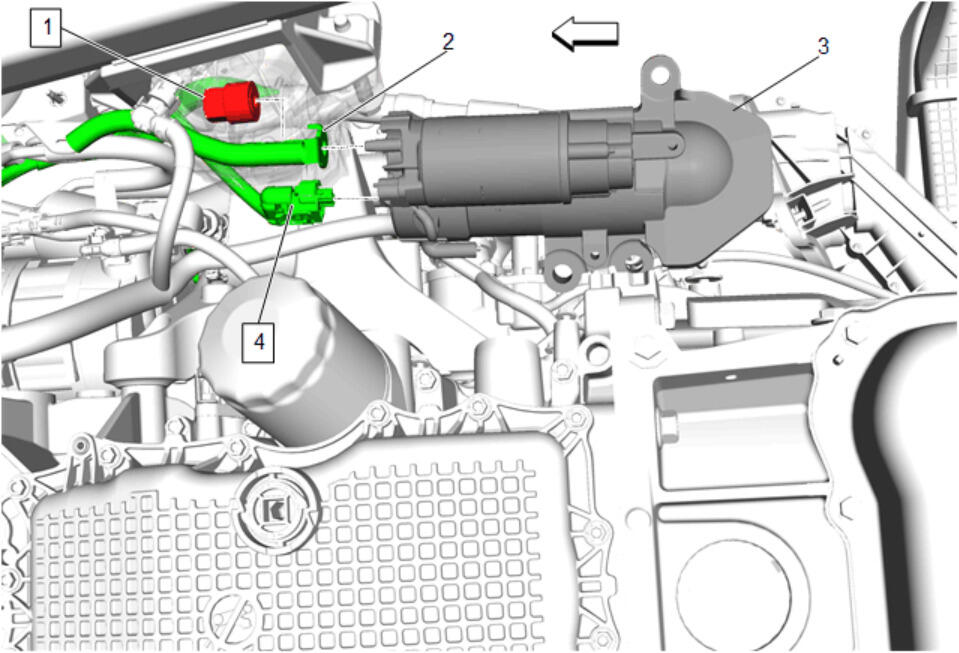

Courtesy of GENERAL MOTORS COMPANY

Auxiliary Generator Battery Jumper Cable (2) - Install
Battery Positive Cable Nut (1) @Starter Solenoid - Install and Tighten 15 N.m (11 lb ft)
Electrical Connector (4) - Connect

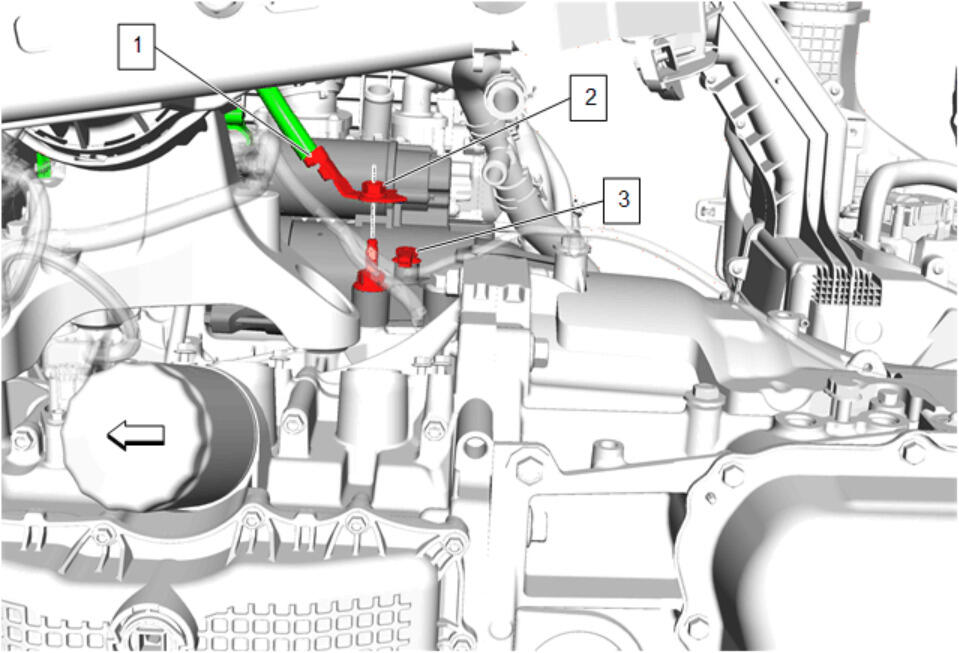

Courtesy of GENERAL MOTORS COMPANY

Auxiliary Generator Battery Jumper Cable (1) - Install
Battery Negative Cable Nut (2) @ Starter Stud - Install and Tighten 22 N.m (16 lb ft)
Retainer (3) - Engage
Automatic Transmission Fluid Cooling Exchanger - Install - Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, without V03) , or Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03)
Oil Level Indicator Tube - Install - Oil Level Indicator Tube Replacement
Lower the vehicle.
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose Clip (2) @Radiator Inlet Hose Bracket - Engage
