Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

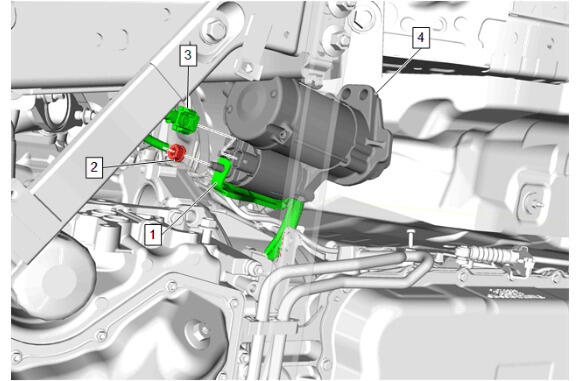

  1. GM5504215Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Generator Battery Jumper Cable (1) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Positive Cable Nut (2) @Starter Solenoid - Install and Tighten 12.5 N.m (111 lb in)
  3. Electrical Connector (3) - Connect
  4. Starter (4) - Install

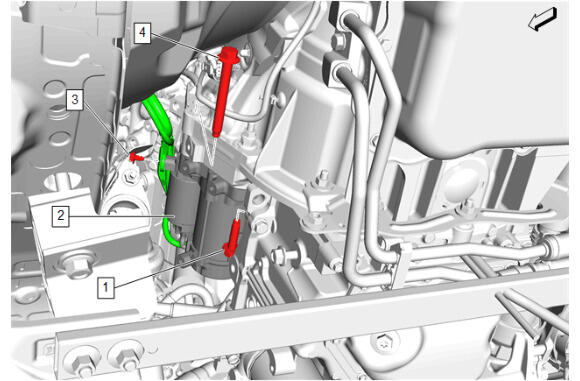

  5. GM5504212Courtesy of GENERAL MOTORS COMPANY

    Starter Bolt (4) - Install and Tighten 58 N.m (43 lb ft)

  6. Starter Bolt (1) - Install and Tighten 58 N.m (43 lb ft)
  7. Battery Cable Terminal Bolt (3) - Install and Tighten 9 N.m (80 lb in)

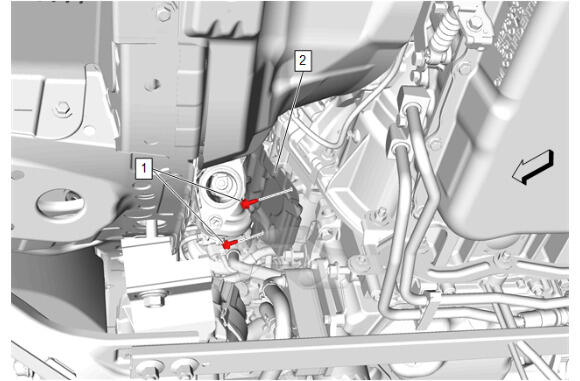

  8. GM5480839Courtesy of GENERAL MOTORS COMPANY

    Starter Heat Shield (2) - Install

  9. Starter Heat Shield Bolt (1) - Install [2x] - Starter Heat Shield Replacement (LGY)
  10. GM5587604Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Oil Feed Pipe Gasket (2) - Install NEW

  11. GM5525929Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Oil Feed Pipe Bolt (1) - Install and tighten [2x] - Turbocharger Oil Feed Pipe Replacement - Left Side

  12. Position the engine mount bracket and engine mount.

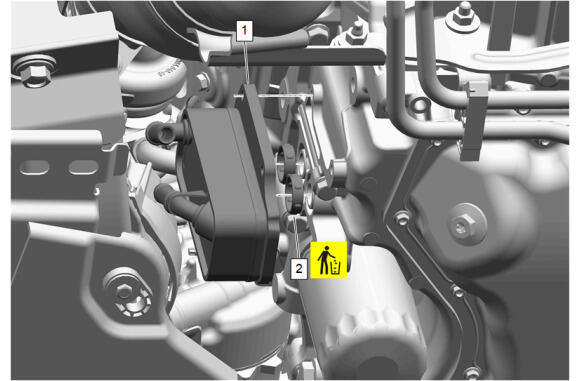

  13. GM5500476Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Seal (2) - Install NEW [2x]

  14. GM5500451Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Bolt (1) - Install and tighten [4x] - Engine Oil Cooler Replacement (LGY)

  15. GM5521778Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bracket Bolt (1) - Install and tighten [4x] - Engine Mount Bracket Replacement - Left Side (AWD) , or Engine Mount Bracket Replacement - Left Side (RWD)

  16. GM5519755Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bolt (1) - Install and tighten [2x] - Engine Mount Replacement - Left Side (RWD)

  17. Lower the engine onto the engine mount.

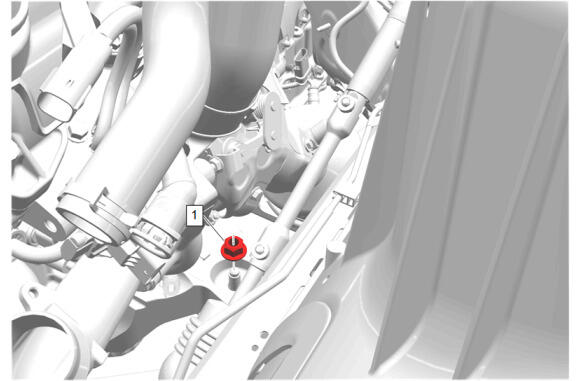

  18. GM5876978Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut- Left Side (1) - Install and tighten - Engine Mount Replacement - Left Side

  19. Remove the engine support fixture.
  20. Install the left side warm up three-way catalytic converter. Warm Up Three-Way Catalytic Converter Replacement - Left Side (LGY)
  21. Lower the vehicle.
  22. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
