Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. GM4546127Courtesy of GENERAL MOTORS COMPANY

    Drive Belt (2) - Remove - Drive Belt Replacement - Accessory

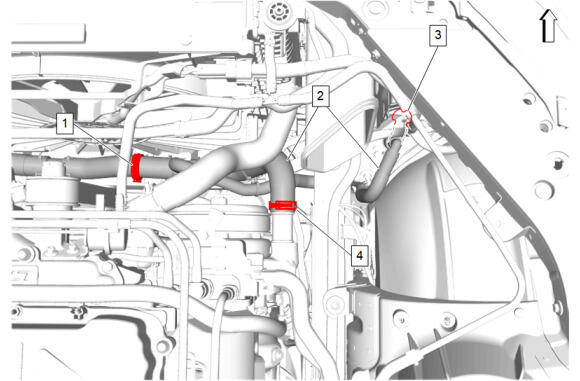

  3. GM5873825Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) - Remove - Radiator Outlet Hose Replacement (LT4)

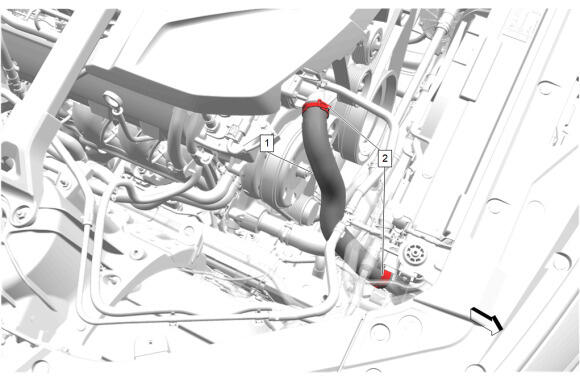

  4. GM5766429Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (1) Remove - Radiator Inlet Hose Replacement (LT4 Engine Radiator to Water Outlet) , or Radiator Inlet Hose Replacement (LT4 Charge Air Cooler - Left Side to Charge Air Cooler Coolant Pump) , or Radiator Inlet Hose Replacement (LT4 Charge Air Cooler - Right Side to Engine Radiator)

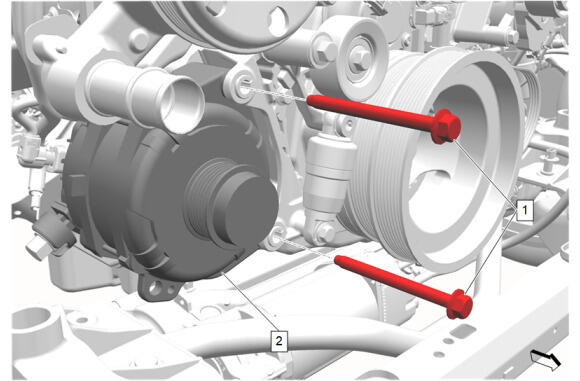

  5. GM5892365Courtesy of GENERAL MOTORS COMPANY

    Generator Bolt (1) - Remove [2x]

  6. Generator (2) - Reposition

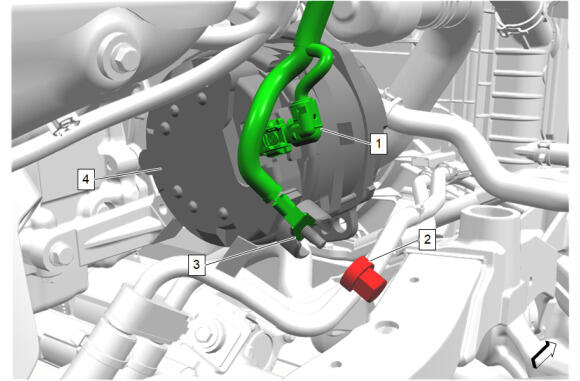

  7. GM5892410Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

  8. Nut@Generator (2) - Remove
  9. Engine Wiring Harness (3) - Reposition
  10. Generator (4) - Remove
