Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5311721Courtesy of GENERAL MOTORS COMPANY

    Feed the battery positive cables (2) into the engine compartment and engage the harness grommet (1).

  2. GM5311675Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (5) - Install [2x]

  3. Auxiliary Generator Battery Jumper Cable (4) - Install
  4. Auxiliary Generator Battery Jumper Cable Nut (3) - Install - Engine Wiring Harness Fuse Block Bracket Replacement
  5. Battery Positive Cable Nut (1) - Install - Battery Distribution Fuse Block Replacement
  6. Fuse Block Cover (2) - Install
  7. GM5311642Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) - Engage [2x]

  8. Engage the battery positive cables (1) into the harness retainer channel.
  9. Brake Master Cylinder - Install - Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (without MJK) , or Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (with MJK)
  10. GM5311553Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage [5x]

  11. GM5735320Courtesy of GENERAL MOTORS COMPANY

    Driver Footrest Bracket (3) - Install

  12. Footrest Bracket Nut (2) - Install and Tighten [2x] - 3 N.m (27 lb in)
  13. Retainer (1) - Engage
  14. GM5735319Courtesy of GENERAL MOTORS COMPANY

    Install the battery positive cable (2) into the harness channel.

  15. Retainer (1) - Engage

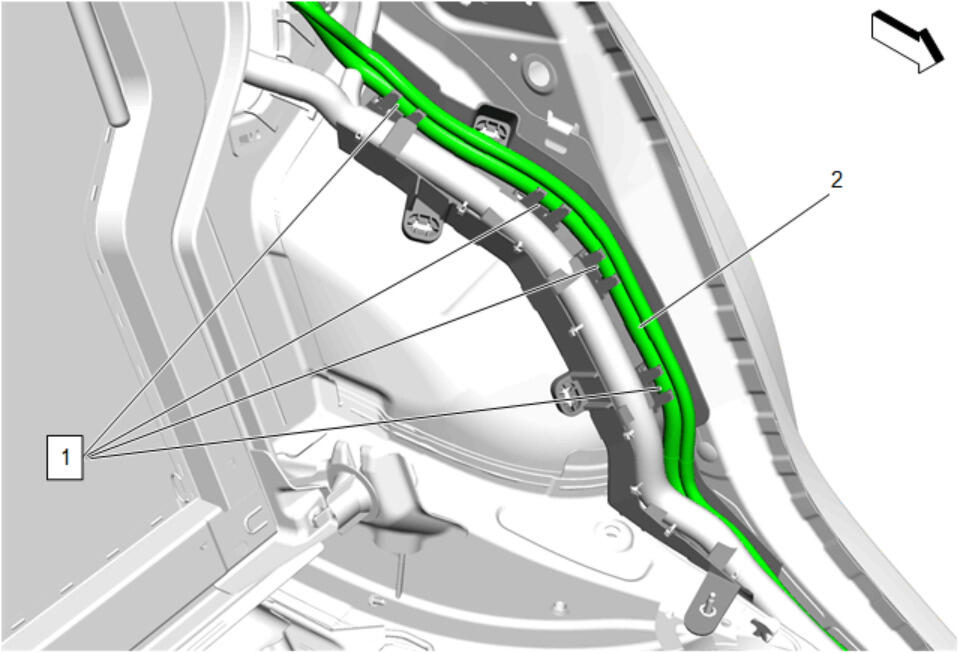

  16. GM5311060Courtesy of GENERAL MOTORS COMPANY

    Engage the battery positive cable (2) to the harness channel retainers (1).

  17. Feed the battery positive cable into the rear compartment.
  18. GM5310962Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) @Rear Body Fuse Block Bracket (1) - Engage

  19. GM5310888Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (3) - Install [2x]

  20. Battery Positive Cable Nut (1) - Install [2x] - Battery Distribution Fuse Block Replacement
  21. Retainer (2) - Engage [2x]
  22. GM5310688Courtesy of GENERAL MOTORS COMPANY

    Rear Body Fuse Block Cover (2) - Install - Rear Body Fuse Block Cover Replacement

  23. GM5332047Courtesy of GENERAL MOTORS COMPANY

    Install the left side front floor panel carpet (3). Front Floor Panel Carpet Replacement - Left Side

  24. GM5332820Courtesy of GENERAL MOTORS COMPANY

    Install the left side rear floor panel carpet (2). Rear Floor Panel Carpet Replacement

  25. GM5324688Courtesy of GENERAL MOTORS COMPANY

    Install the left side rear seat back bolster (2). Rear Seat Back Bolster Replacement

  26. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
