Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. GM5318507Courtesy of GENERAL MOTORS COMPANY

    Fuse Block Cover (1) - Remove

  3. Auxiliary Generator Battery Jumper Cable Nut (2) - Remove
  4. Battery Positive Cable Nut (3) - Remove
  5. Battery Negative Cable Ground Bolt (4) - Remove
  6. Retainer (5) - Disengage [3x]
  7. Auxiliary Generator Battery Jumper Cable (6) - Reposition away

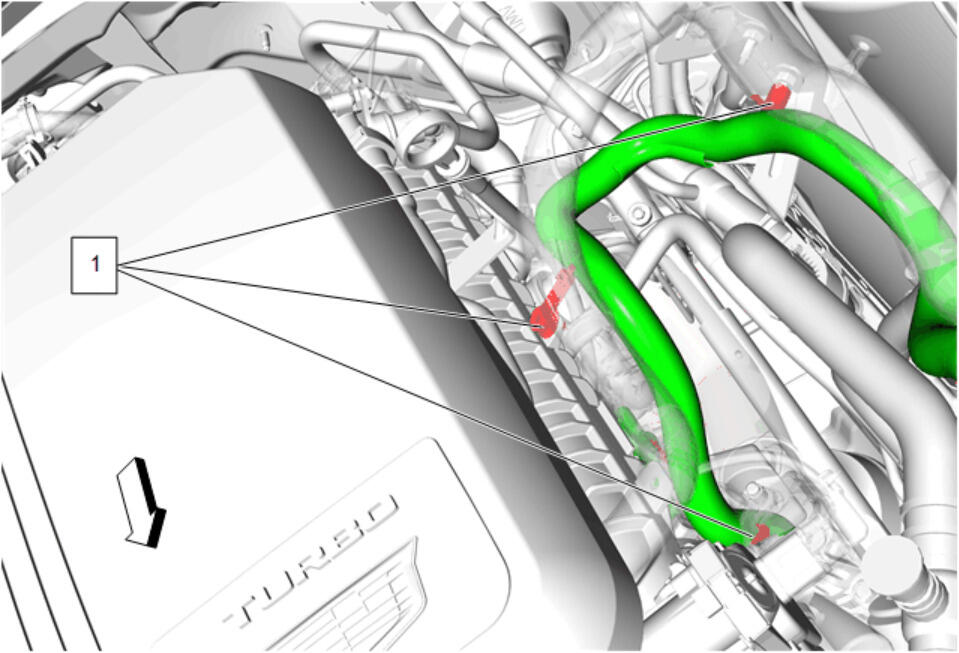

  8. GM5318530Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Disengage [3x]

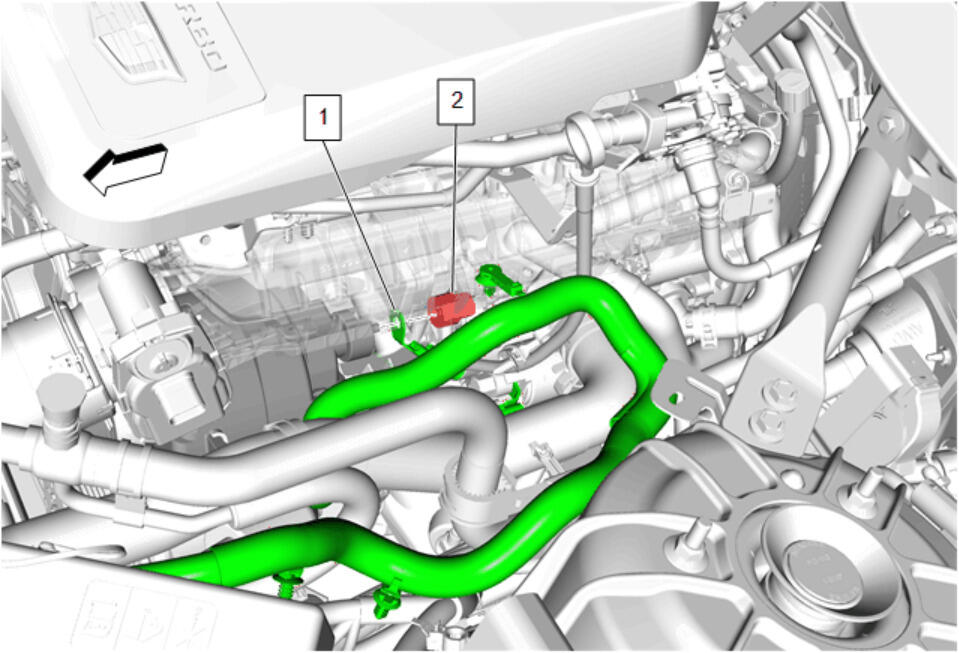

  9. GM5318579Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Nut (2) @Generator - Remove

  10. Auxiliary Generator Battery Jumper Cable (1) - Remove

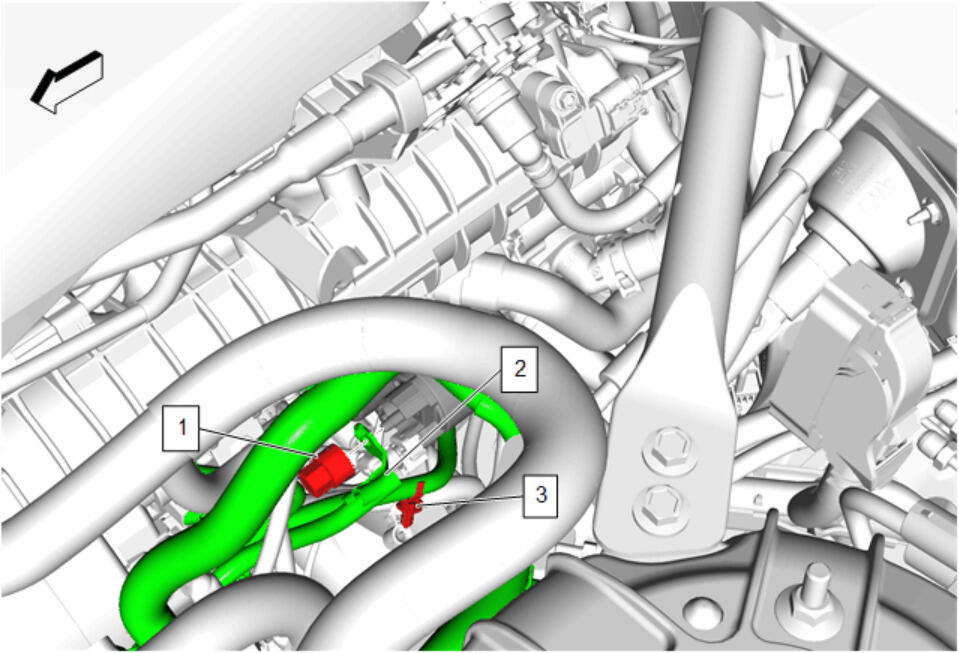

  11. GM5318567Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Nut (1) @Starter Solenoid - Remove

  12. Auxiliary Generator Battery Jumper Cable (2) - Remove
  13. Retainer (3) - Disengage
  14. Raise and support the vehicle. Lifting and Jacking the Vehicle

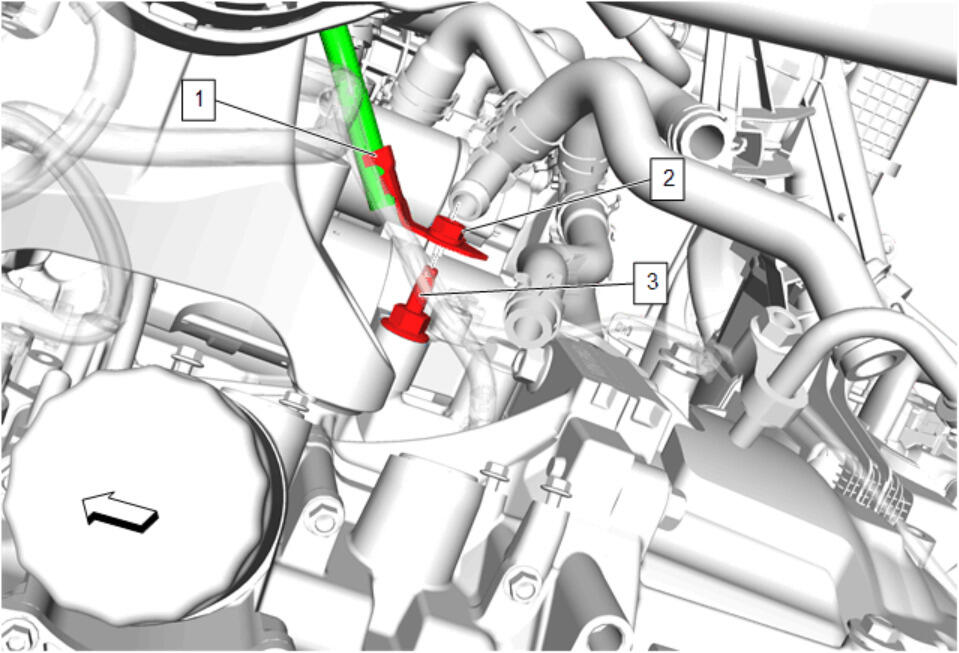

  15. GM5318550Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Nut (2) @Starter Stud (3) - Remove

  16. Auxiliary Generator Battery Jumper Cable (1) - Remove
  17. Lower the vehicle.

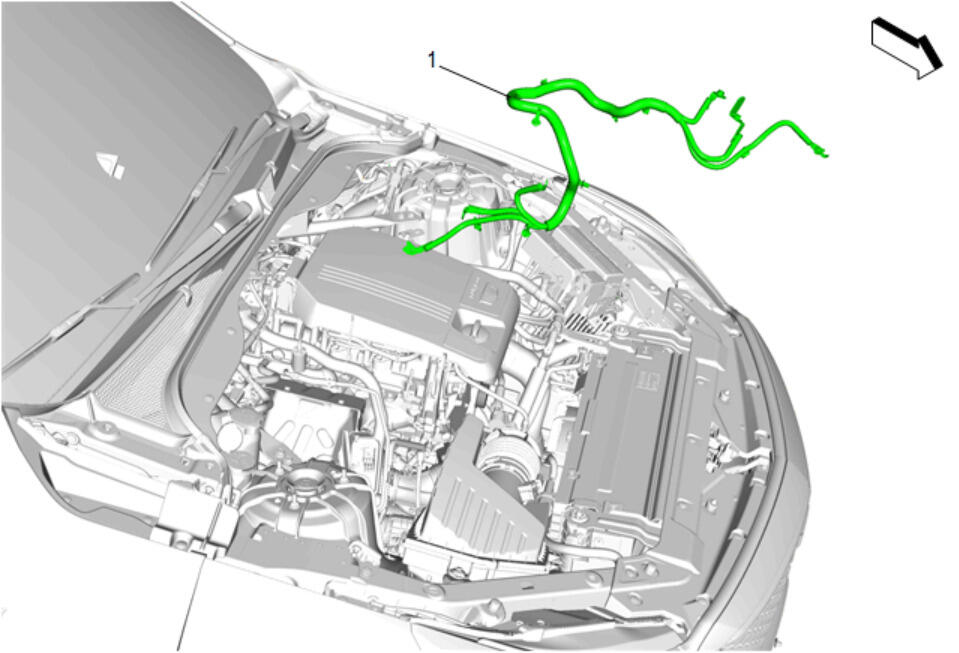

  18. GM5318589Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Generator Battery Jumper Cable (1) - Remove
