Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5313411Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Water Deflector (1) - Remove - Rear Side Door Water Deflector Replacement

  2. Disconnect the electrical connector.
  3. GM5323248Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Latch Bolt (1) - Remove [3x]

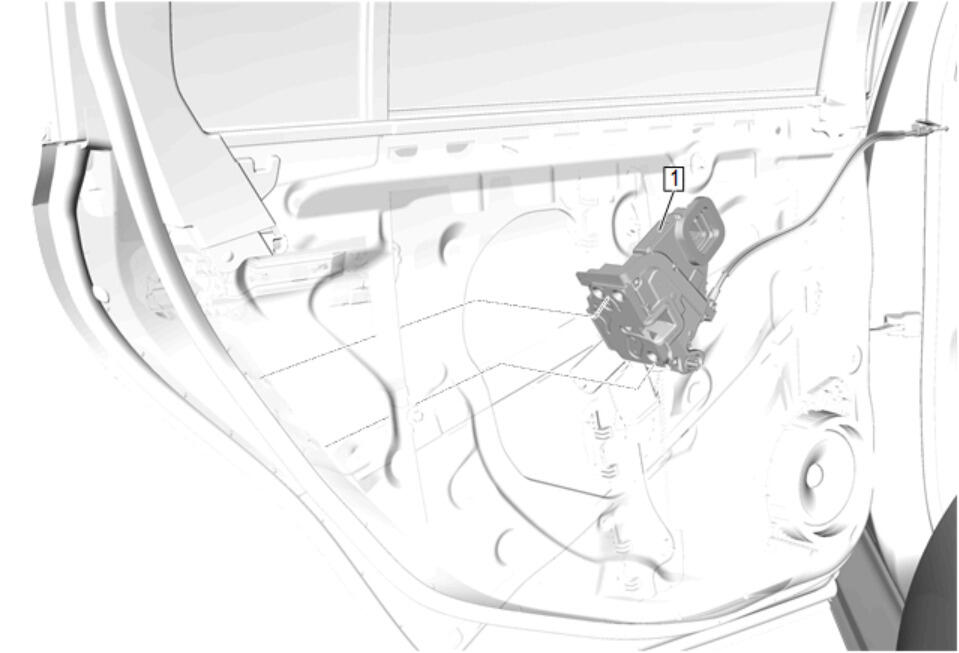

  4. GM5323251Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Latch (1) - Remove

  5. Transfer components as necessary.
