Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

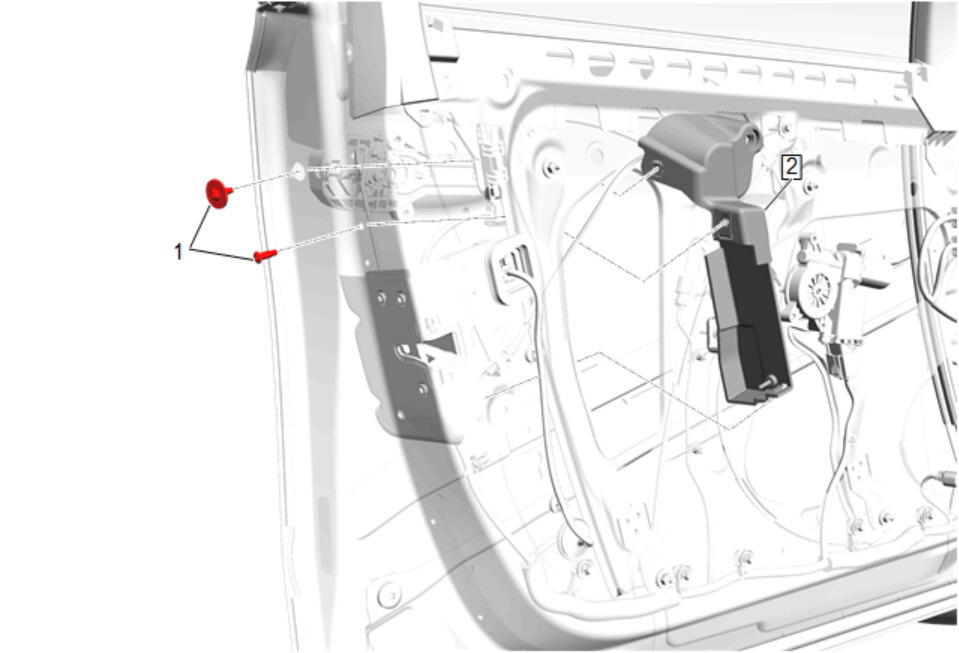

Front Side Door Water Deflector (1) - Remove - Front Side Door Water Deflector Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cover (2) - Remove - Front Side Door Lock Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

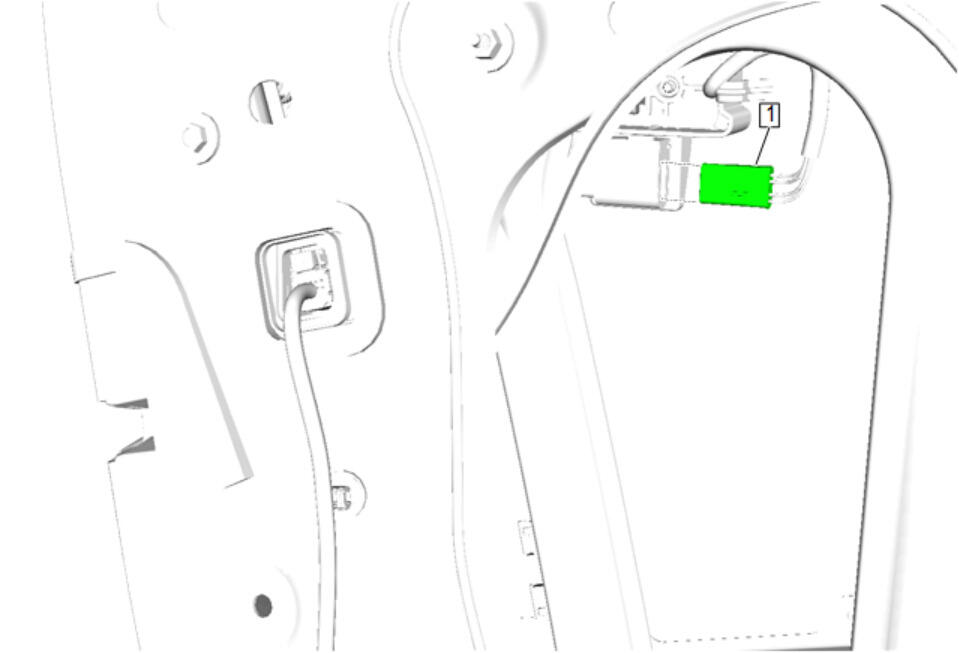

Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
- Around 10 to 12 rotations is enough to allow the front side door outside handle to be removed.
- Support the front side door outside handle while loosening the front side door outside handle bracket.
Front Side Door Outside Handle Bracket Screw (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle (1) - Remove
Transfer components as necessary.
