Front Side Door Lock Cylinder Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Lock Cylinder Rod Replacement

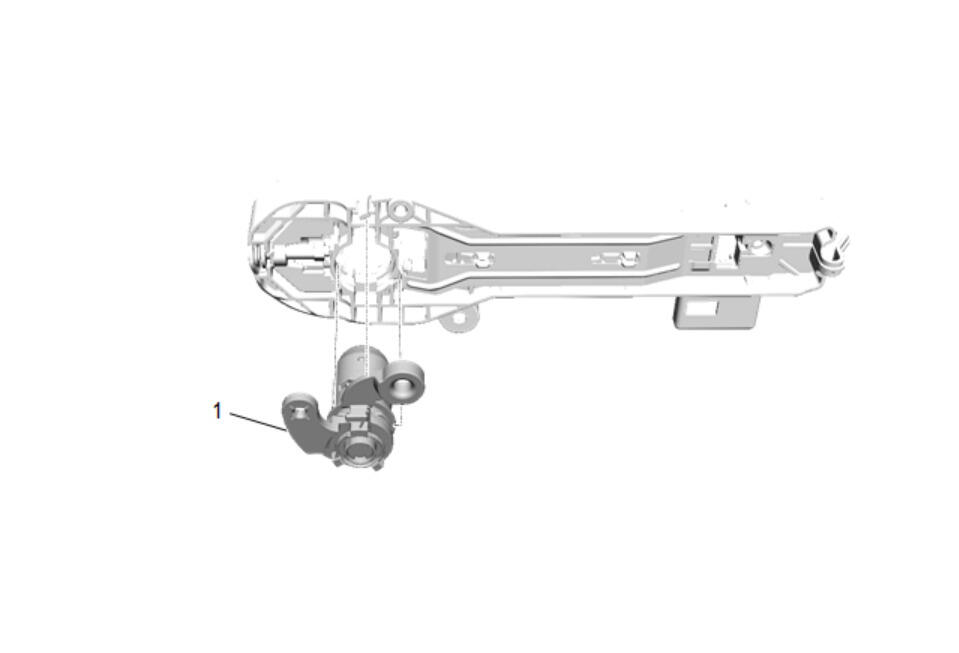

1	Front Side Door Lock Cylinder Procedure Release the retaining clips to remove the front side door lock cylinder. If necessary, perform the front side door lock cylinder coding procedure. Front Side Door Lock Cylinder Coding (Free Wheeling) , or Front Side Door Lock Cylinder Coding (Non Free Wheeling)

Callout

Component Name

Preliminary Procedure
Front Side Door Lock Cylinder Rod Replacement

Front Side Door Lock Cylinder

Procedure

Release the retaining clips to remove the front side door lock cylinder.
If necessary, perform the front side door lock cylinder coding procedure. Front Side Door Lock Cylinder Coding (Free Wheeling) , or Front Side Door Lock Cylinder Coding (Non Free Wheeling)
