Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Remove the appropriate front side door water deflector:
- Front Side Door Water Deflector Replacement - Driver Side
- Front Side Door Water Deflector Replacement - Passenger Side
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Channel Retainer (2) - Remove - Front Side Door Window Channel Retainer Replacement
Courtesy of GENERAL MOTORS COMPANY

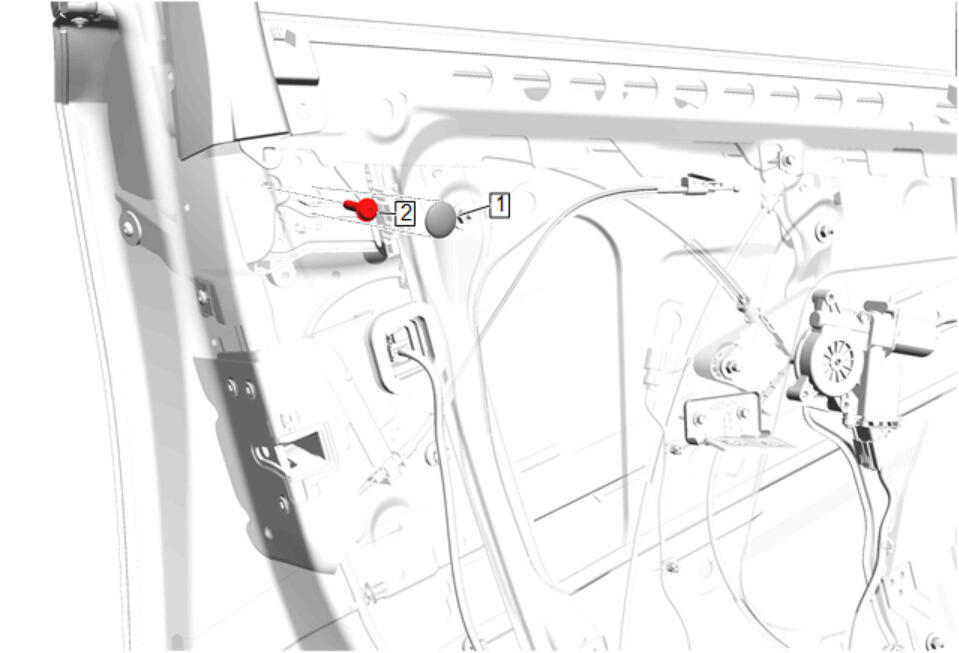

Front Side Door Access Hole Plug (1) - Remove
Front Side Door Lock Cover Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Remove front side door weatherstrip retainers as needed and reposition the front side door weatherstrip - door side (1) to access to the inboard lock cover bolt.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cover Bolt (1) - Remove [2x]
Front Side Door Lock Cover (2) - Remove
