Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5294195Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Water Deflector (1) - Remove - Front Side Door Water Deflector Replacement - Driver Side

  2. GM5311153Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Channel Retainer (2) - Remove - Front Side Door Window Channel Retainer Replacement

  3. GM5311665Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Lock Cover (2) - Remove - Front Side Door Lock Cover Replacement

  4. GM5315343Courtesy of GENERAL MOTORS COMPANY

    Using a suitable tool, release the retaining tab on the front side door latch clip (2).

  5. Open the front side door latch clip (2) and remove the front side door lock cylinder rod (1) from the clip.
  6. Disconnect the electrical connector.

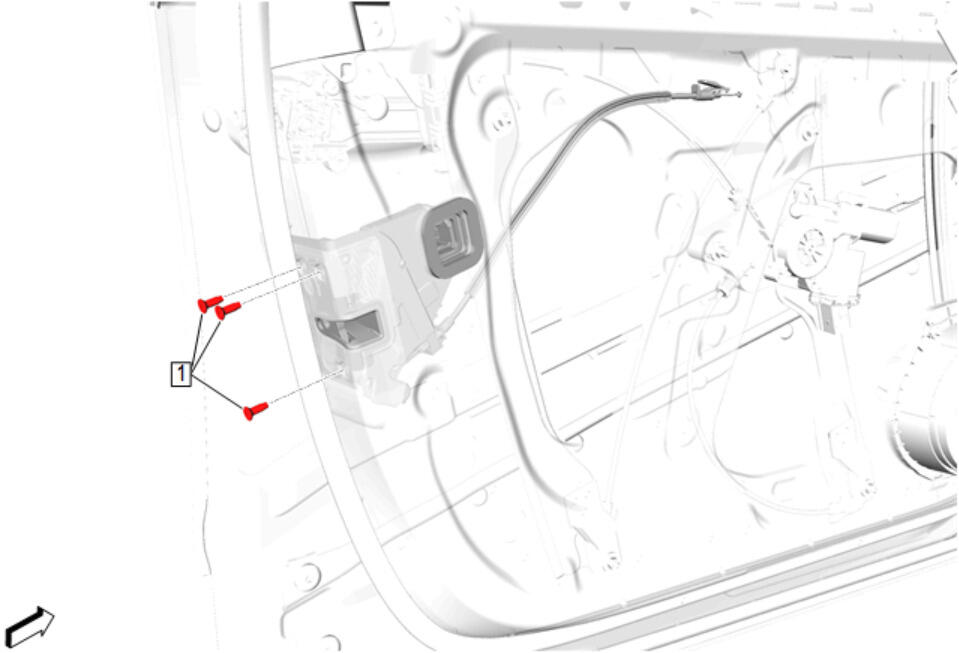

  7. GM5317905Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Latch Bolt (1) - Remove [3x]

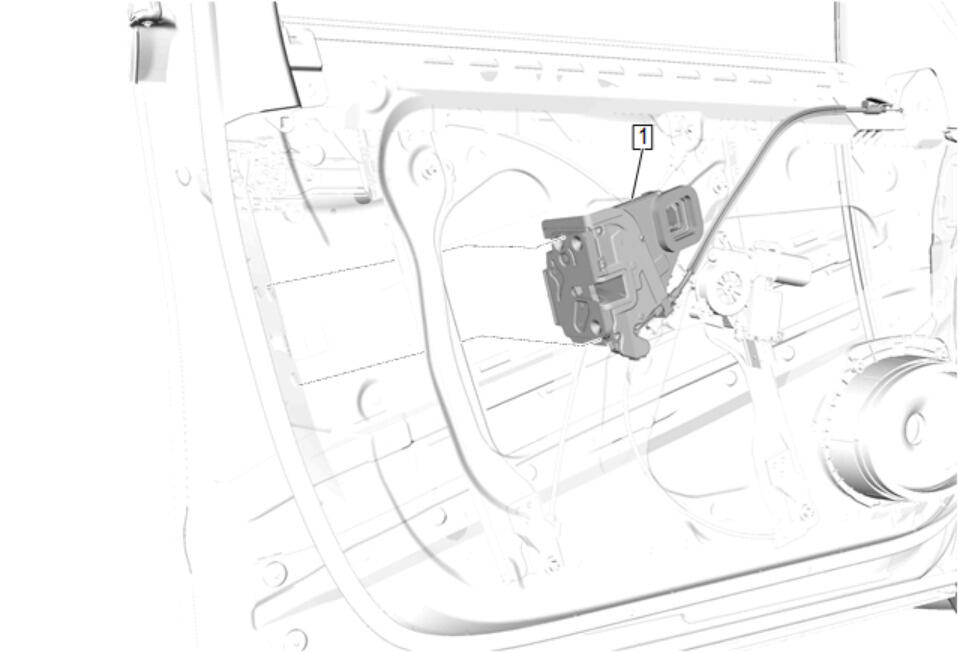

  8. GM5317911Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Latch (1) - Remove

  9. Transfer components as necessary.
