Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

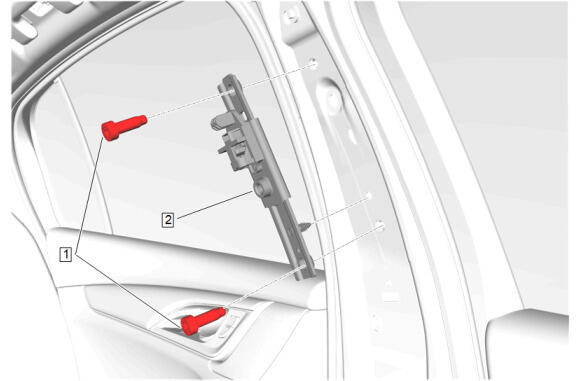

Front Seat Belt Guide Adjuster (2) - Install
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Front Seat Belt Adjust Bolt (1) - Install and tighten 45 N.m (33 lb ft) [2x]
Return the front seat belt to the original location.
- Front Seat Belt Retainer (2) - Install
- Front Seat Belt Retractor D Ring Bolt (1) - Install - Front Seat Belt Retractor Replacement
Center Pillar Upper Trim Panel (3) - Install - Center Pillar Upper Trim Panel Replacement
CAUTION:
Refer to Fastener Caution .
