Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

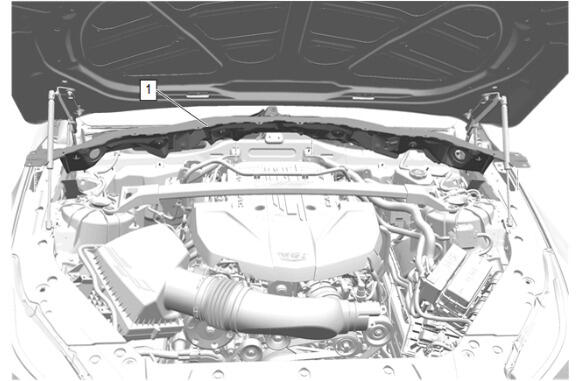

Plenum Front Panel(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Plenum Front Panel Bolt(1) - Install and tighten [3x] 9 N.m (80 lb in)
Plenum Front Panel Nut(2) - Install and tighten [3x] 9 N.m (80 lb in)
Install the windshield wiper motor harness (3) to the plenum front panel.
Courtesy of GENERAL MOTORS COMPANY

Plenum Front Panel Bolt(1) - Install and tighten [4x] 9 N.m (80 lb in)
Plenum Front Panel Nut(2) - Install and tighten [3x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper Transmission(2) - Install - Windshield Wiper Transmission Replacement
Courtesy of GENERAL MOTORS COMPANY

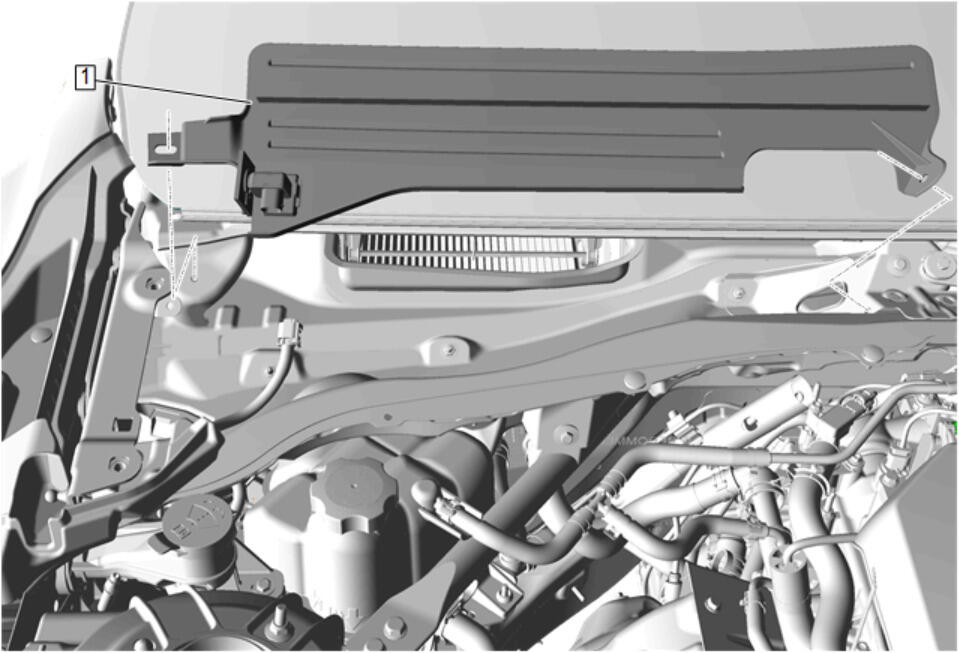

Air Inlet Deflector Water Deflector(1) - Install - Air Inlet Deflector Water Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel(2) - Install - Air Inlet Grille Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the left and right side front compartment side sight shield (2). Front Compartment Side Sight Shield Replacement (with Blackwing)
