Front End Sheet Metal Cross Brace Replacement - Upper (Blackwing)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

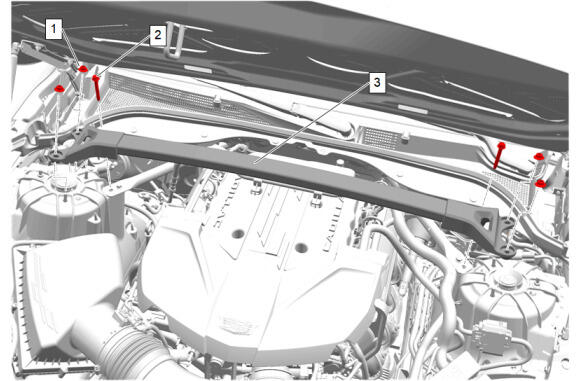

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Front Suspension Strut Upper Mounting Nut [4x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Front End Sheet Metal Cross Brace Bolt [2x] Tighten 22 N.m (16 lb ft) |
| 3 | Front End Sheet Metal Cross Brace - Upper |
