Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5326460Courtesy of GENERAL MOTORS COMPANY

    Rear Window (2) - Install - Adhesive Installation of Rear Windows

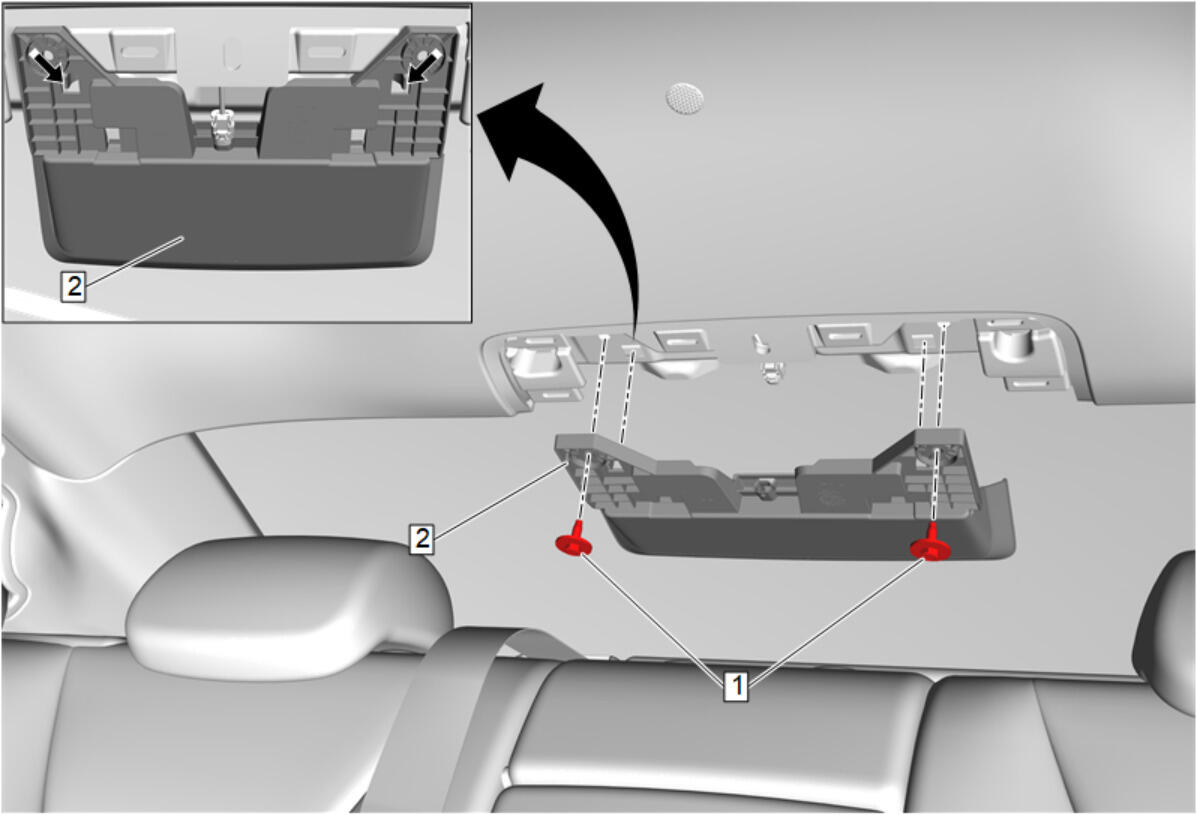

  2. GM5311251Courtesy of GENERAL MOTORS COMPANY

    High Mount Stop Lamp (2) - Install - High Mount Stop Lamp Replacement

  3. Connect the defrost tab electrical connectors.
  4. Quarter Upper Trim Panel - Install - Quarter Upper Trim Panel Replacement
  5. Remove the tape.
  6. Remove any remaining adhesive residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe the surface dry with a clean lint-free towel.
