Rear Side Door Window Switch Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Side Door Armrest Switch Mount Plate Replacement

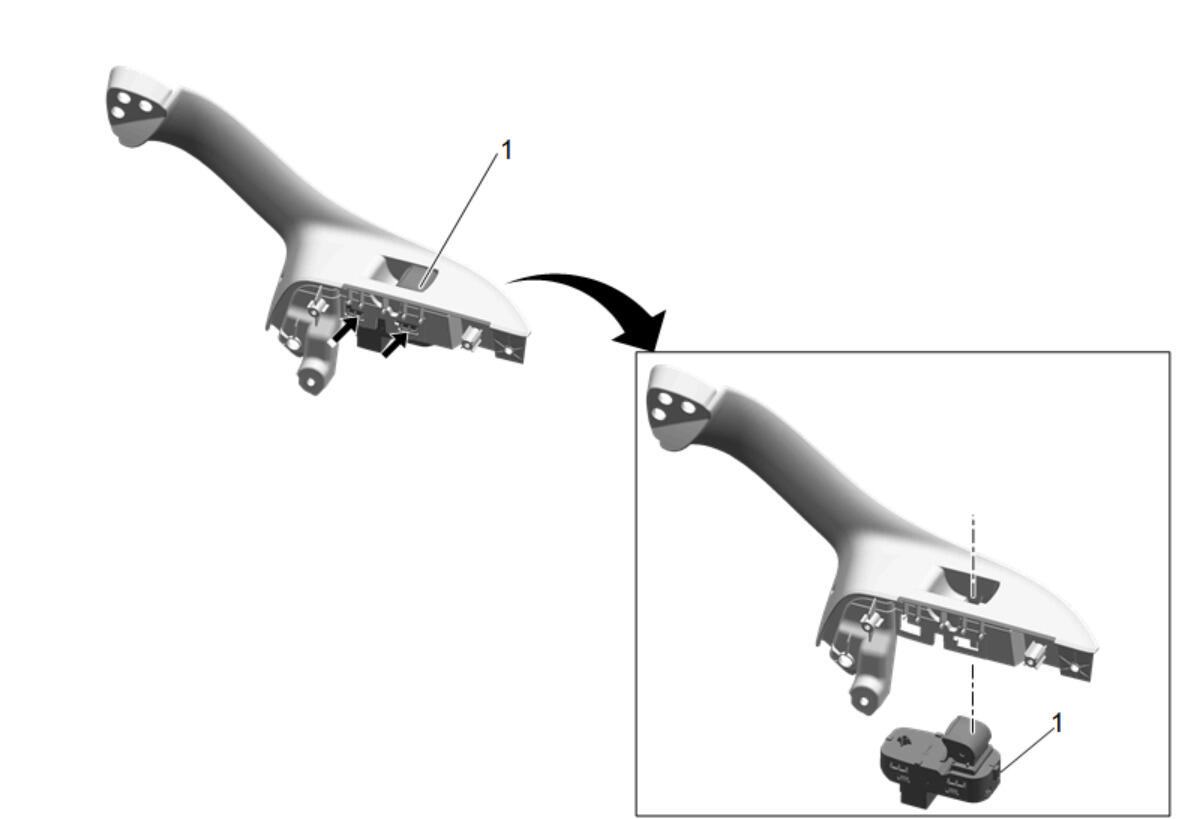

1	Rear Side Door Window Switch Procedure Release the switch from the switch mount plate by depressing the tabs along each side of the switch. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Rear Side Door Armrest Switch Mount Plate Replacement

Rear Side Door Window Switch

Procedure

Release the switch from the switch mount plate by depressing the tabs along each side of the switch.
Disconnect the electrical connector.
