Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

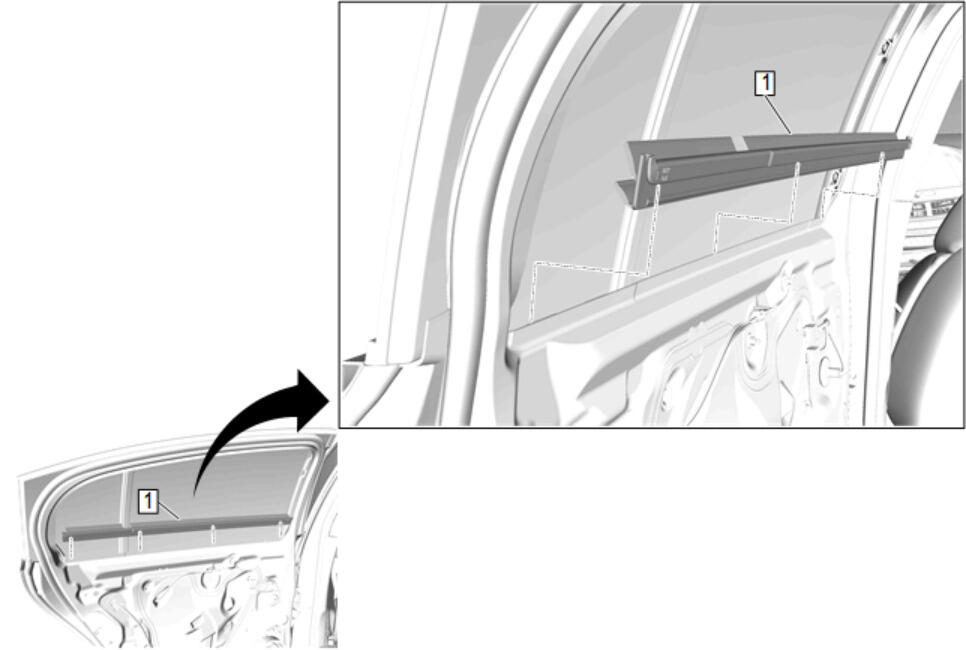

Place the rear side door window (1) into the door frame.
Guide the rear side door window (1) into the front and rear channels of the rear side door window weatherstrip.
Courtesy of GENERAL MOTORS COMPANY

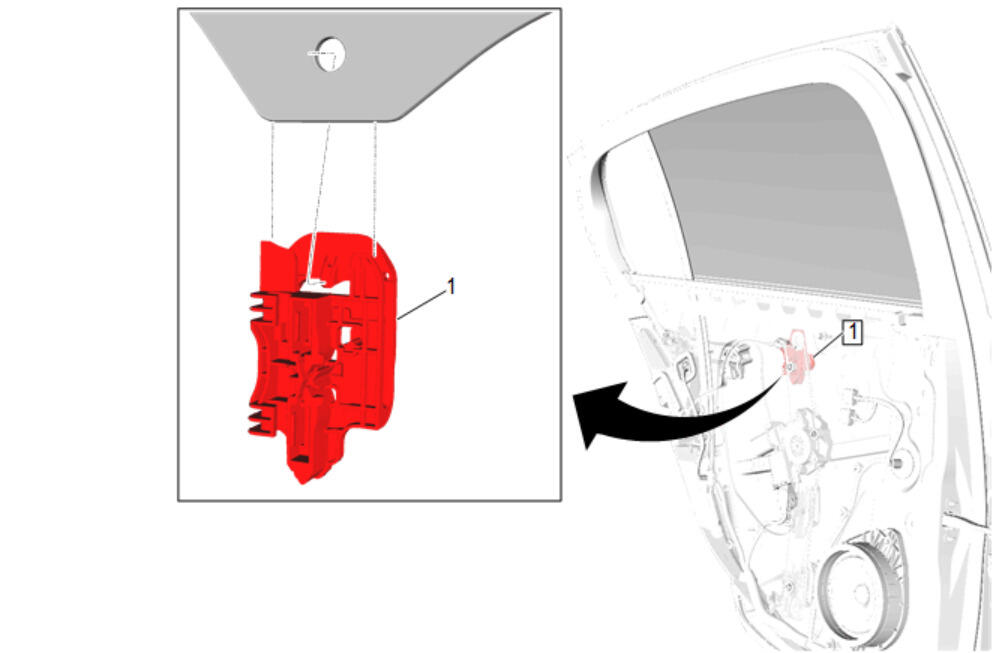

Rear Side Door Window Regulator Sash Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Weatherstrip Bolt - Lower (1) - Install - Rear Side Door Window Weatherstrip Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Belt Reveal Molding (1) - Install - Rear Side Door Window Belt Reveal Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Inner Sealing Strip (1) - Install - Rear Side Door Window Inner Sealing Strip Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Water Deflector (1) - Install - Rear Side Door Water Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Garnish Molding (2) - Install - Rear Side Door Window Garnish Molding Replacement
Ensure the window system operates properly.
