Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
WARNING:
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.
- Place the window in the full up position and tape in place.
Rear Side Door Water Deflector (1) - Remove - Rear Side Door Water Deflector Replacement
Rear Side Door Window Regulator Sash Retainer (1) - Release
- Place the window regulator in the full down position.
Disconnect the electrical connector.

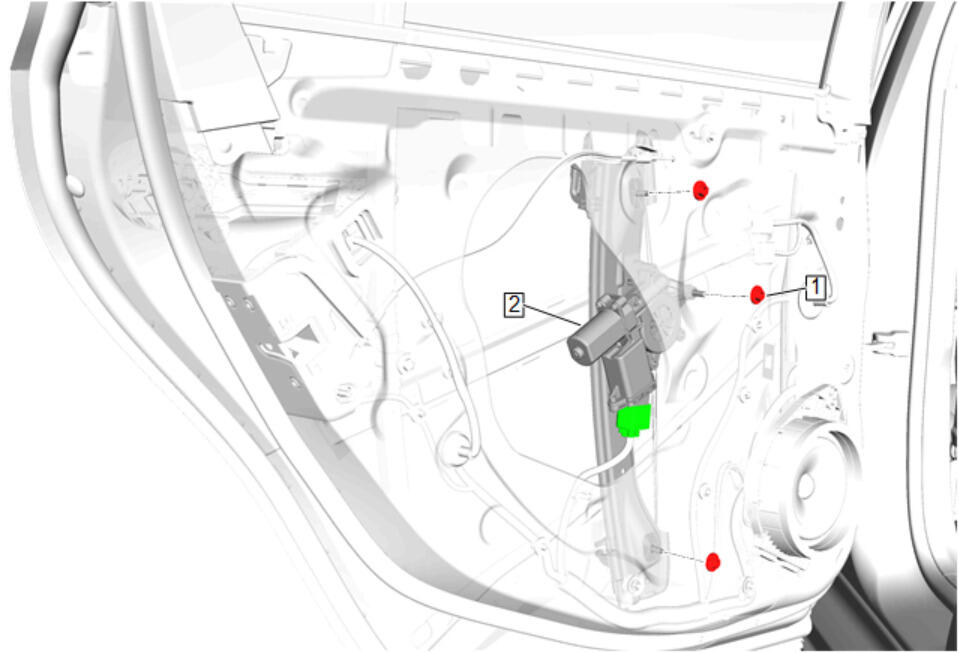

- Rear Side Door Window Regulator Nut (1) - Remove [3x]
- Rear Side Door Window Regulator (2) - Remove
- Transfer components as necessary.
