Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Place the front side door window (1) into the door frame.
Place the front side door window (1) in the full up position and tape in place.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Channel Retainer (2) - Install - Front Side Door Window Channel Retainer Replacement
Courtesy of GENERAL MOTORS COMPANY

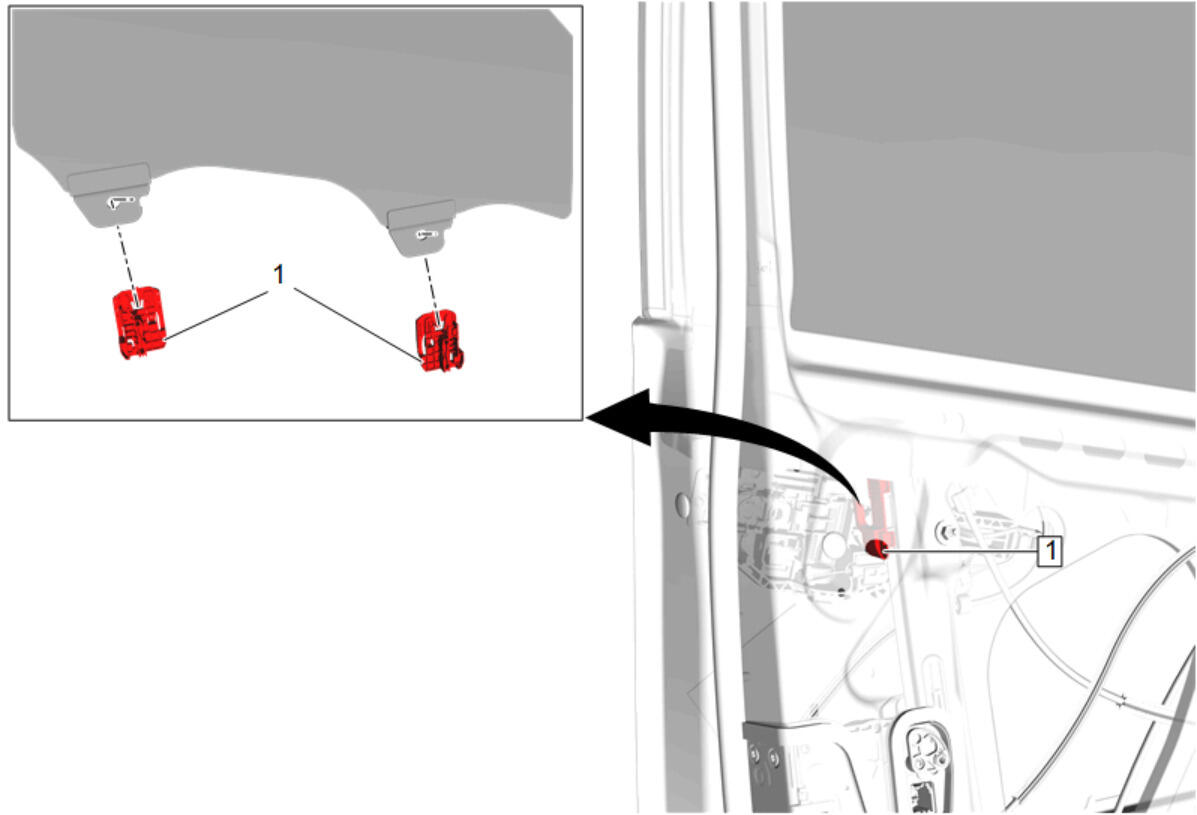

Place the window regulator in the full up position to install the window regulator sash retainers (1).
Remove the tape holding the front side door window in the full up position.
Courtesy of GENERAL MOTORS COMPANY

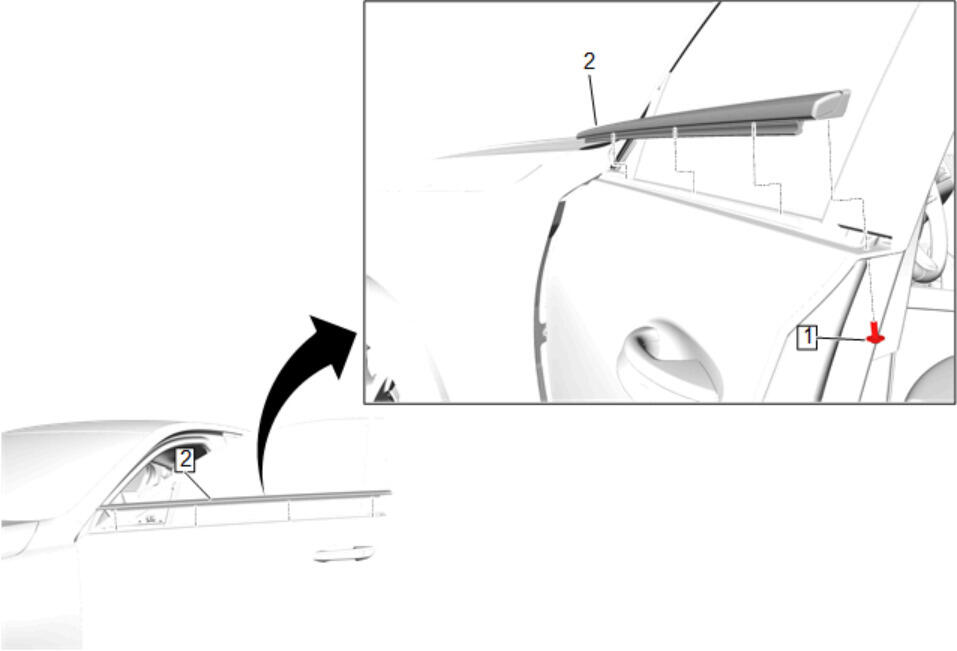

Front Side Door Window Belt Reveal Molding (2) - Install - Front Side Door Window Belt Reveal Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Inner Window Sealing Strip (1) - Install - Front Side Door Window Inner Sealing Strip Replacement
Install the appropriate front side door water deflector.
- Front Side Door Water Deflector Replacement - Driver Side
- Front Side Door Water Deflector Replacement - Passenger Side
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Garnish Molding (2) - Install - Front Side Door Window Garnish Molding Replacement
Ensure the window system operates properly.
