Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5312015Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Belt Reveal Molding (2) - Remove - Front Side Door Window Belt Reveal Molding Replacement

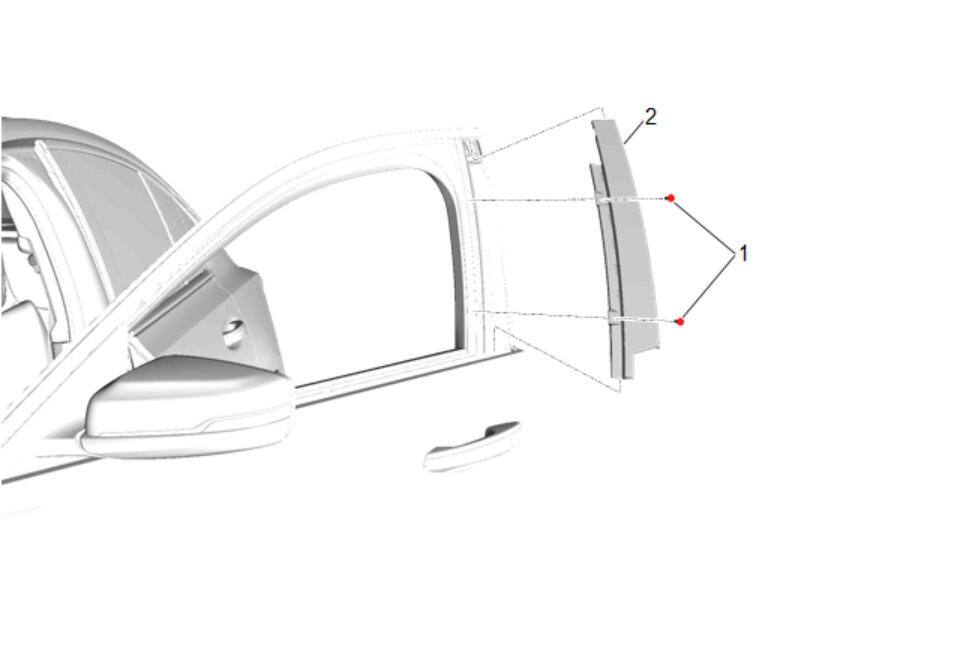

  2. GM5312683Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pull the weatherstrip back to gain access to the side door window frame applique bolts.

    Front Side Door Window Frame Rear Applique Bolt (1) - Remove [2x]

  3. Slide the front side door window frame rear applique (2) down to release the top retaining clip, then lift up and out of door panel.
