Radio Rear Surround Speaker Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

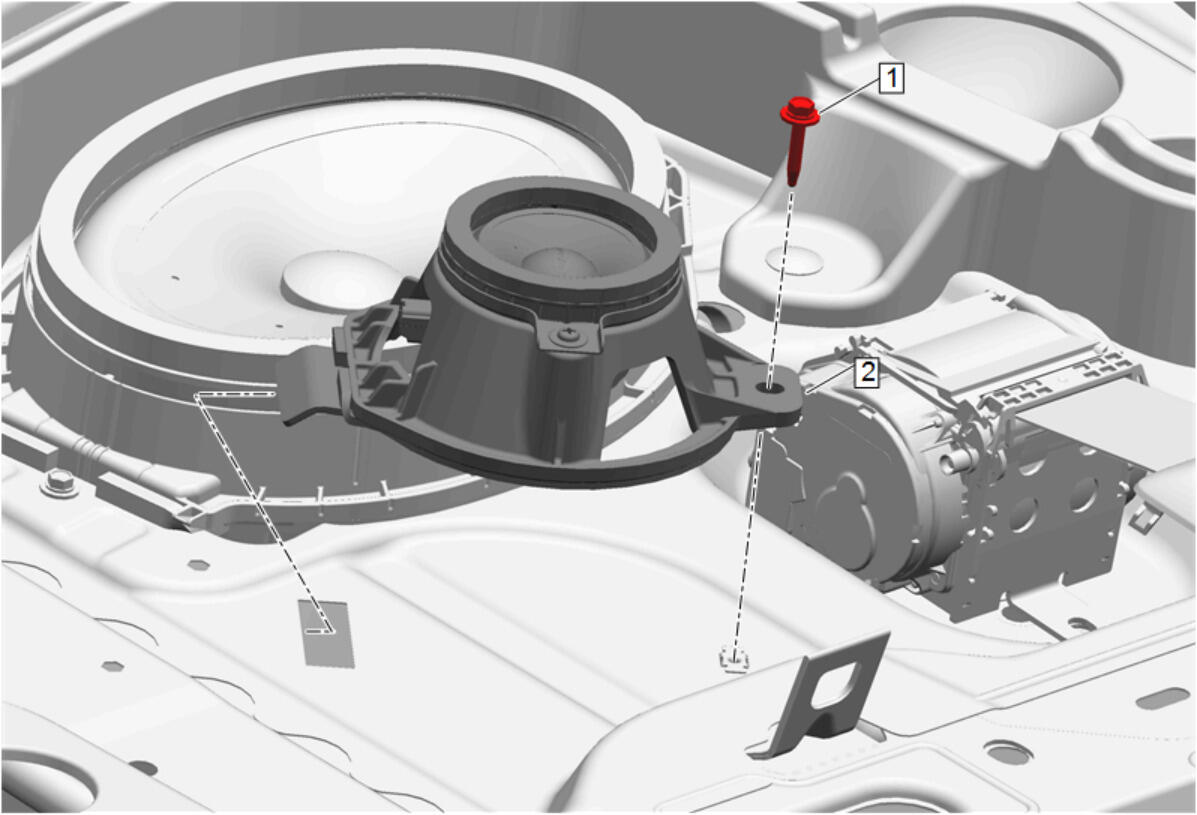

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Window Panel Trim Replacement |
|
| 1 | Radio Rear Surround Speaker Bolt
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Rear Surround Speaker Procedure Disconnect the electrical connector. |
