Radio Control Switch Replacement - Steering Wheel
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

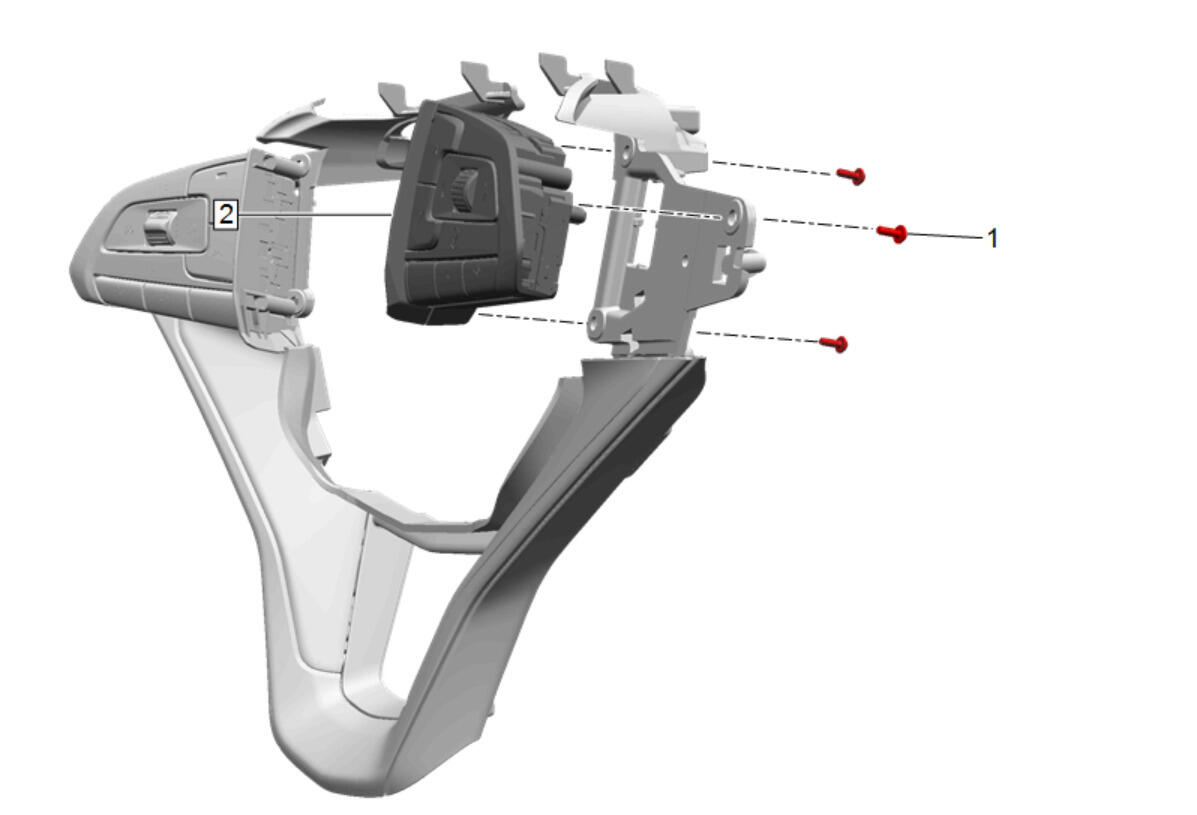

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Steering Wheel Spoke Cover Replacement |
|
| 1 | Steering Wheel Screw [3x]
CAUTION:
Refer to Fastener Caution . Tighten 0.80 N.m (7 lb in) |
| 2 | Radio Control Switch Procedure Disconnect the electrical connector. |
