Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

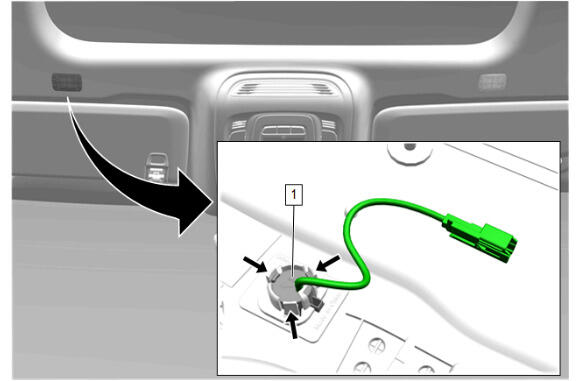

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)
1	Mobile Telephone Microphone Procedure Disconnect the electrical connector. Unlock the retaining tabs.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)

Mobile Telephone Microphone

Procedure

Disconnect the electrical connector.
Unlock the retaining tabs.
