Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

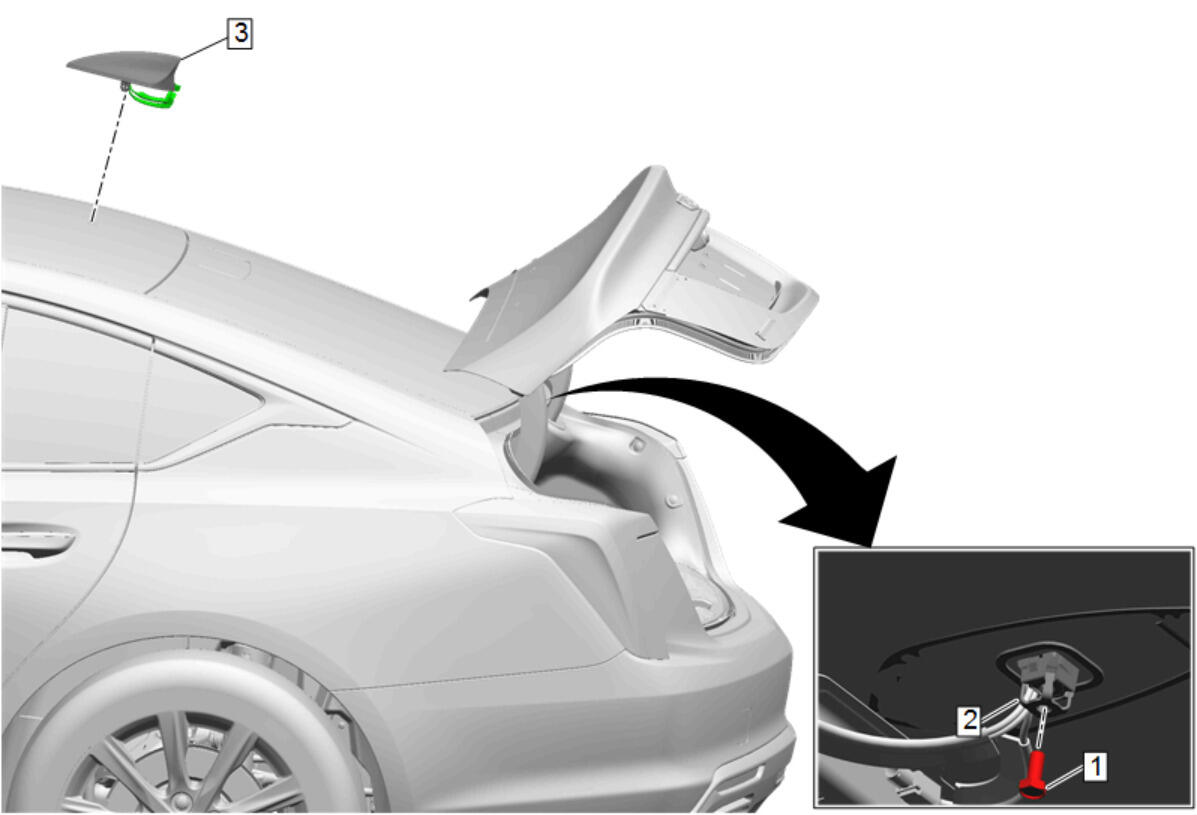

Install the new high frequency antenna (3), high frequency antenna retainer (2), and high frequency antenna bolt (1) through the roof opening as an assembly.
- High Frequency Antenna Bolt (1) - Tighten - Fastener Specifications
- Ensure the high frequency antenna retainer (2) is properly compressed, securely retaining the high frequency antenna (3) to the vehicles roof.
- Connect the electrical connectors.
- Install the headlining trim panel.
Quarter Upper Trim Panel (3) - Install - Quarter Upper Trim Panel Replacement

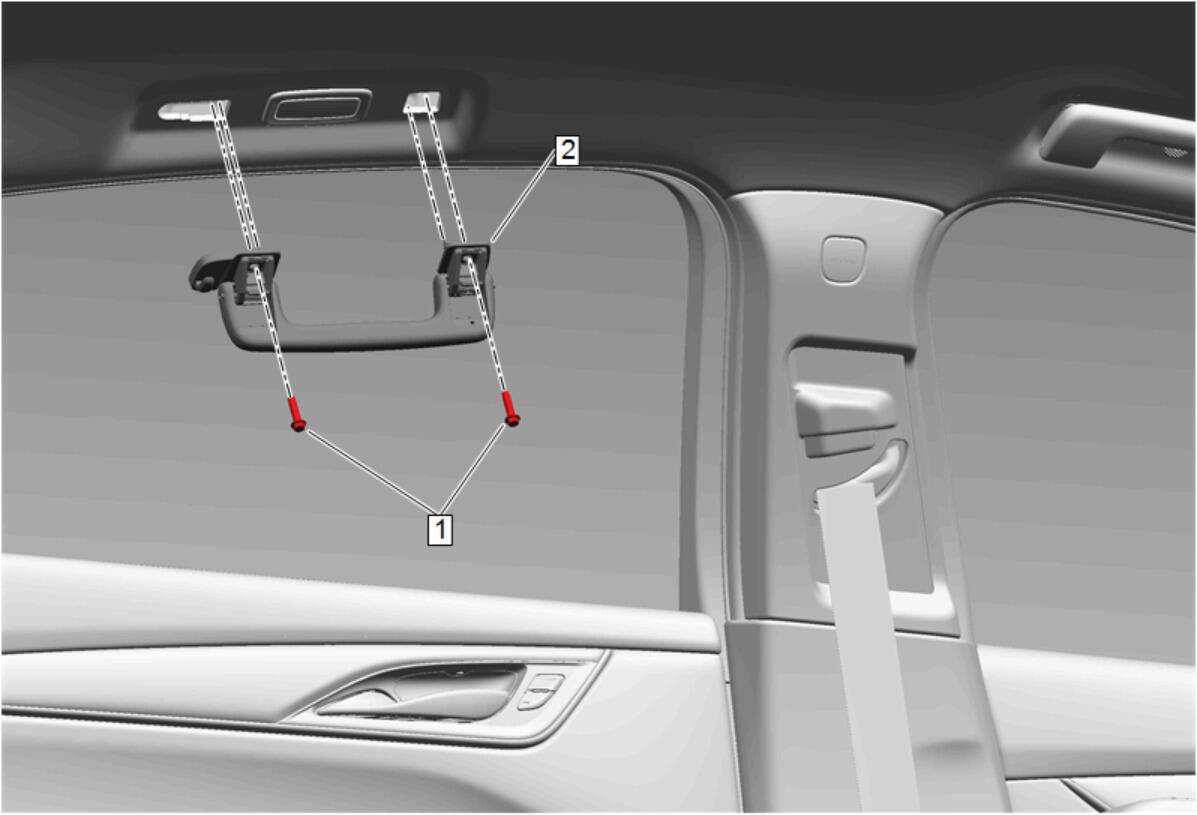

Roof Rail Rear Assist Handle (2) - Install - Roof Rail Rear Assist Handle Replacement
Center Pillar Upper Trim Panel (3) - Install - Center Pillar Upper Trim Panel Replacement

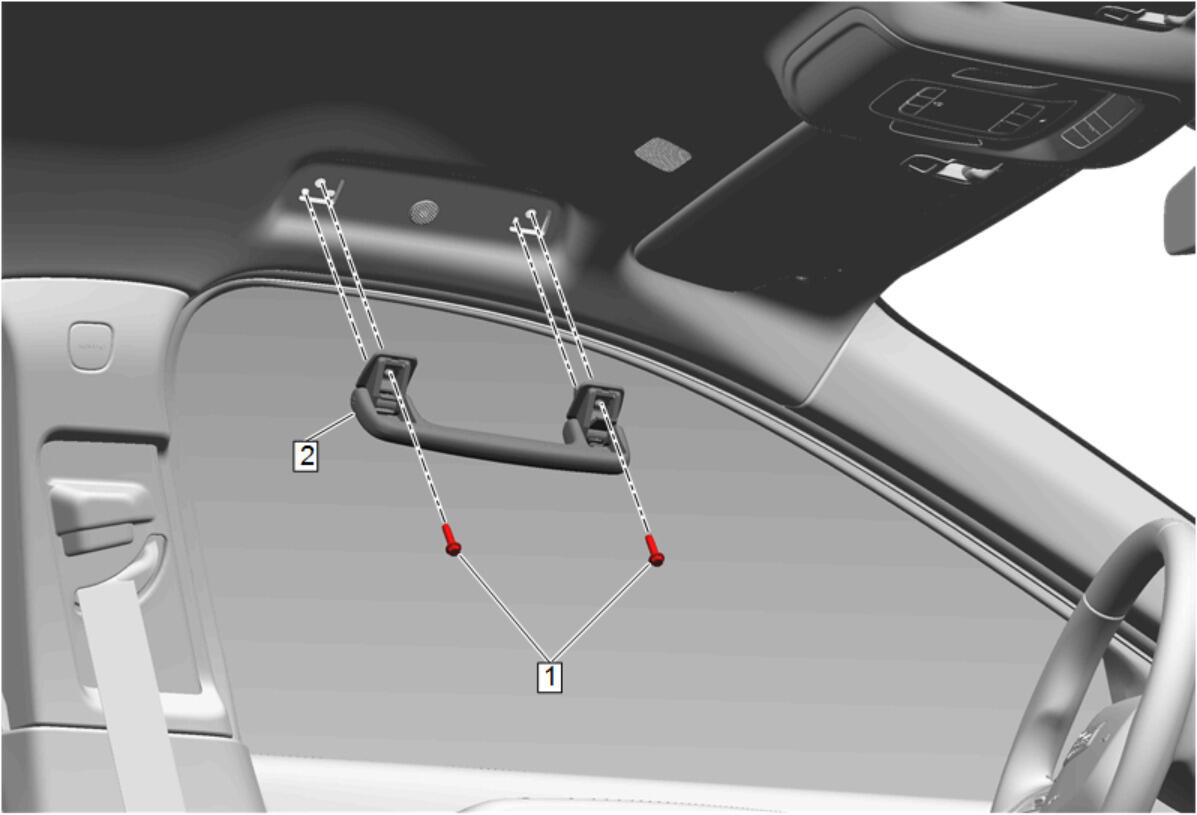

Roof Rail Assist Handle (2) - Install - Roof Rail Assist Handle Replacement
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
