Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Plenum Front Panel (1) - Remove - Plenum Front Panel Replacement (without Blackwing) , or Plenum Front Panel Replacement (with Blackwing)

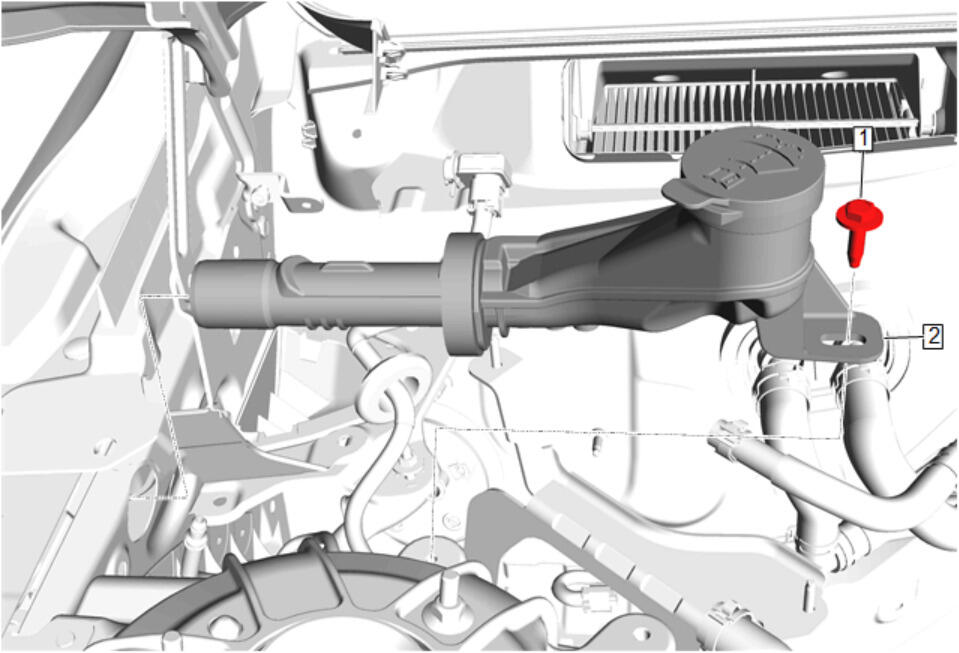

Windshield Washer Solvent Container Filler Tube (2) - Remove - Windshield Washer Solvent Container Filler Tube Replacement

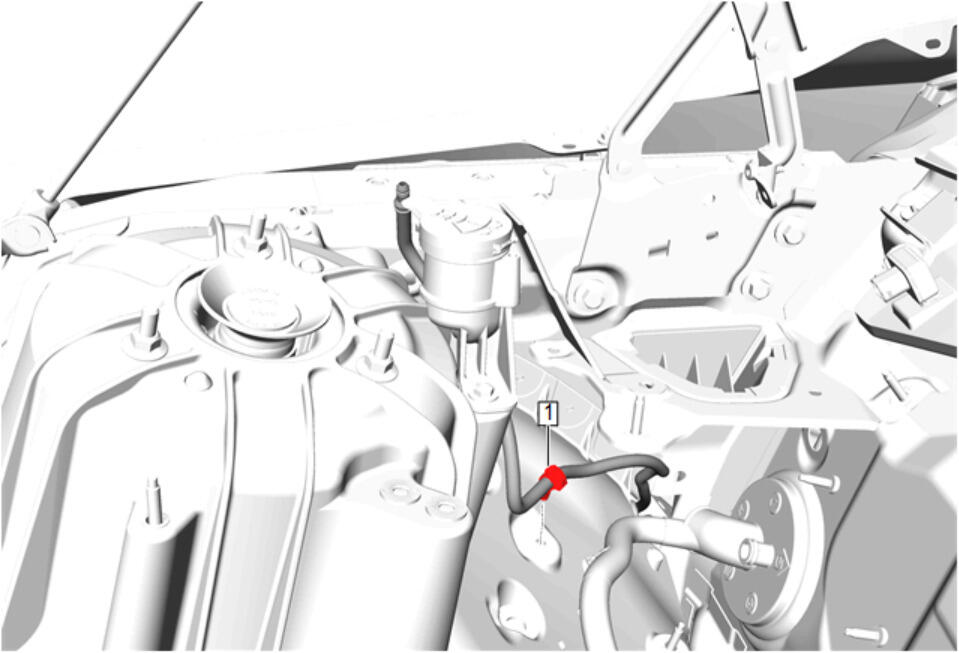

Windshield Washer Pump Hose Retainer (1) - Remove

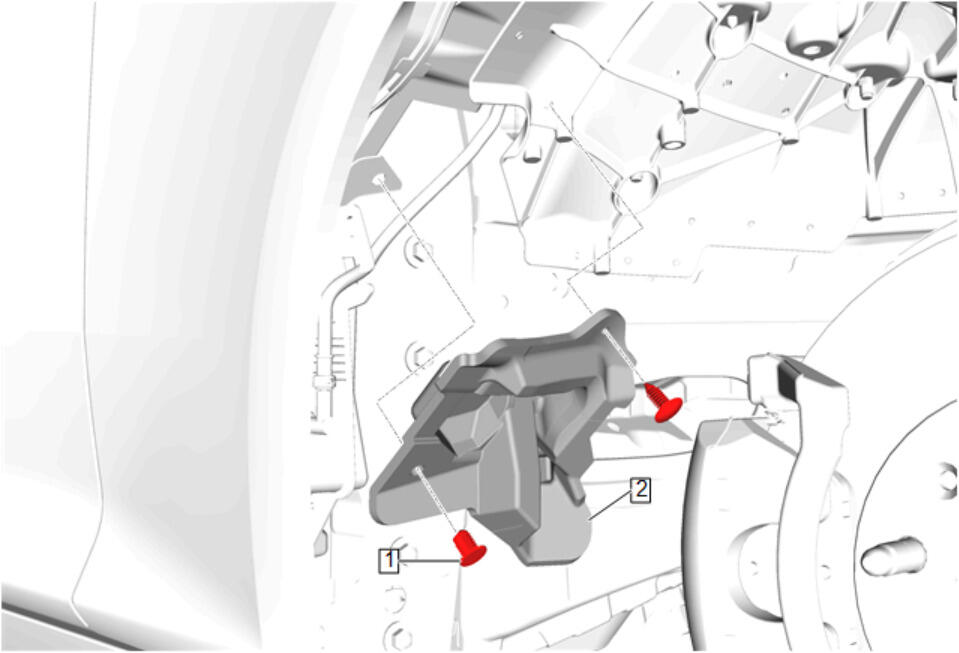

Body Side Air Outlet Seal (2) - Remove - Body Side Air Outlet Seal Replacement
- Place a clean suitable drain pan under the windshield washer solvent container area to recover the windshield washer solvent when the windshield washer pump hose is disconnected.

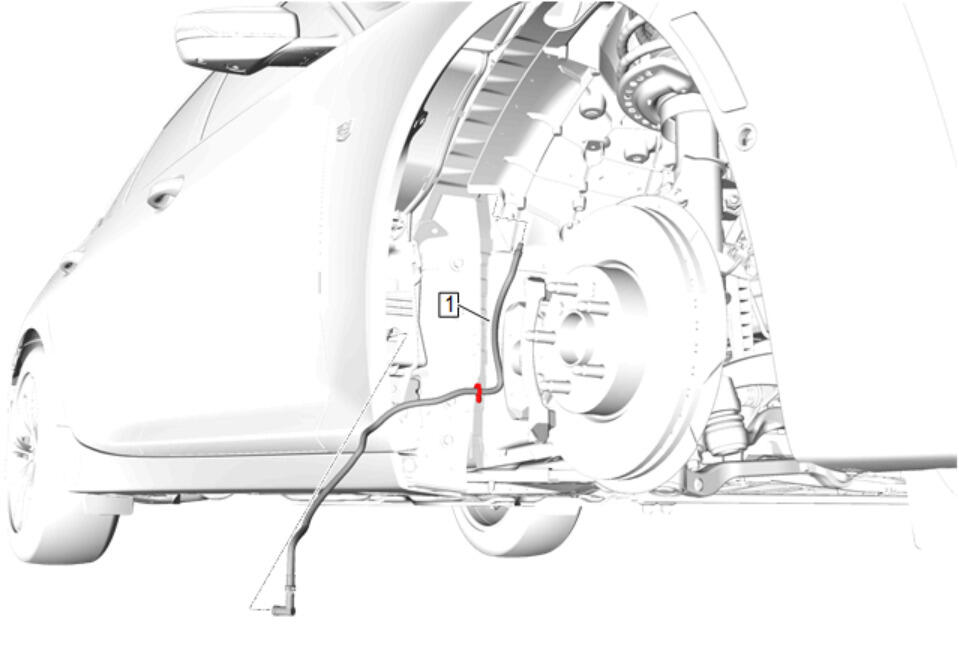

Windshield Washer Pump Hose (1) @ Windshield Washer Pump - Disconnect
- Remove the windshield washer pump hose (1) from the vehicle.
