Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connector.
Front Seat Belt Retractor (3) - Install
- Front Seat Belt Retractor Bolt -Lower (2) - Install and tighten 45 N.m (33 lb ft)
- Front Seat Belt Retractor Bolt -Upper (1) - Install and tighten 9 N.m (80 lb in)
Front Seat Belt Retainer (2) - Install
- Front Seat Belt Retractor D Ring Bolt (1) - Install and tighten 45 N.m (33 lb ft)

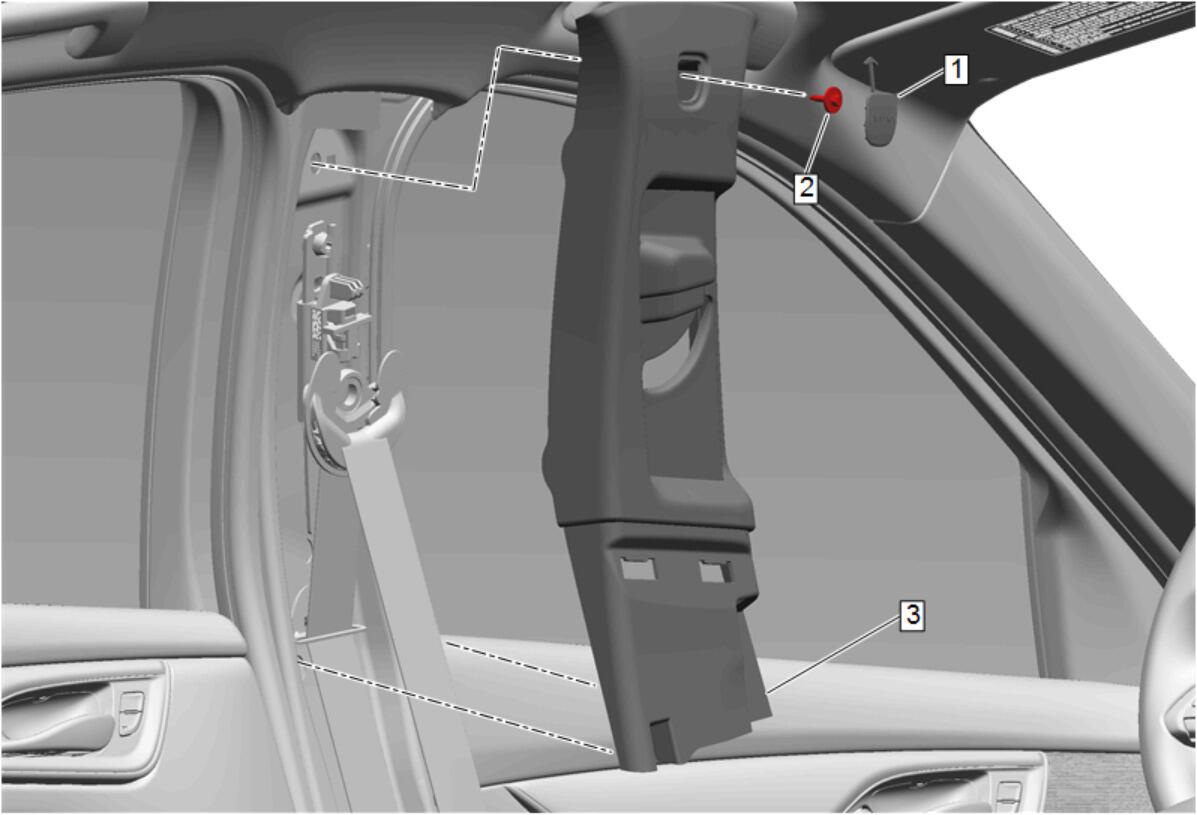

Center Pillar Upper Trim Panel (3) - Install - Center Pillar Upper Trim Panel Replacement
Front Seat Belt Anchor Plate Tensioner Bolt- Upper (2) - Install - Front Seat Belt Anchor Plate Tensioner Replacement
- Perform the necessary programming and setup procedure: Control Module References
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
