Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Front Seat (2) - Remove - Front Seat Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Seat Cushion Outer Finish Cover (3) - Remove - Front Seat Cushion Outer Finish Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Seat Cushion Front Finish Cover (3) - Remove - Front Seat Cushion Front Finish Cover Replacement (Seat Cushion)
Courtesy of GENERAL MOTORS COMPANY

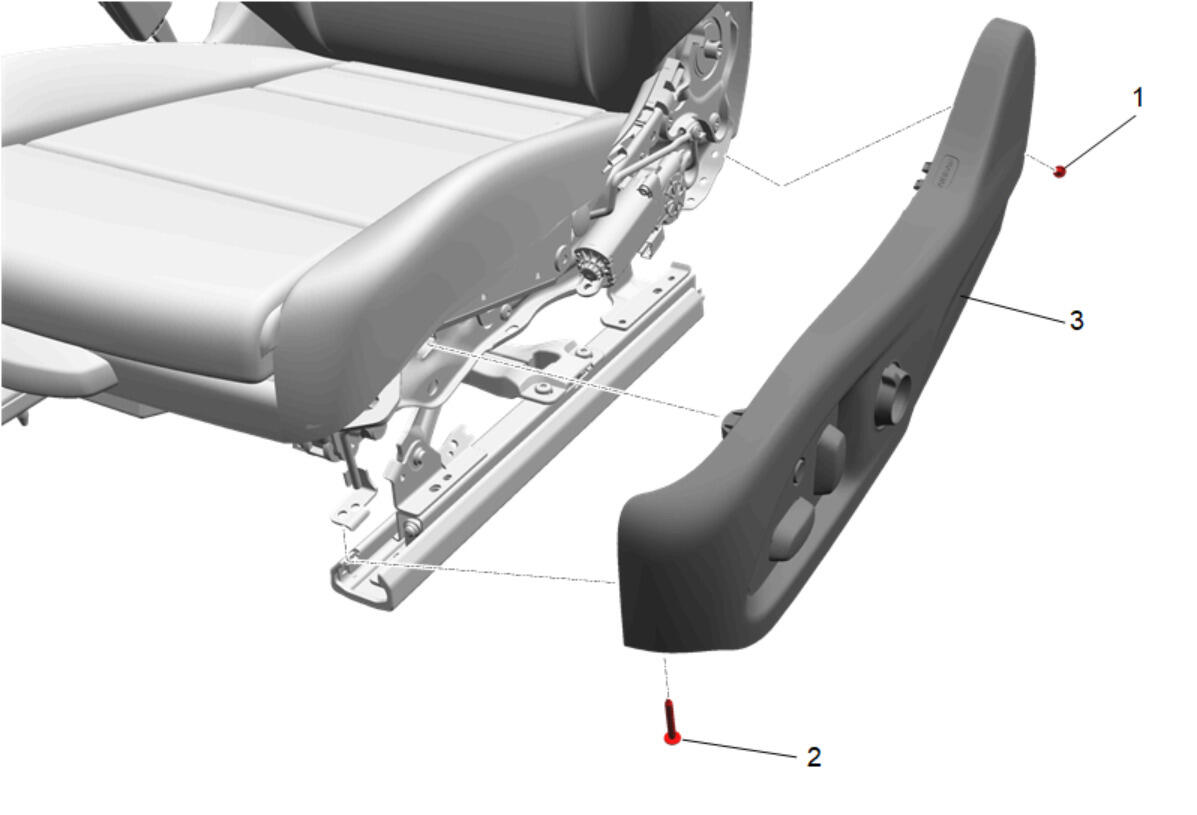

Front Seat Inner Adjuster Front Finish Cover (2) - Remove - Front Seat Inner Adjuster Front Finish Cover Replacement
{If equipped} Front Seat Cushion Front Extension Frame - Remove - Front Seat Cushion Front Extension Frame Replacement
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Front Seat Cushion Ventilation Blower (1) - Remove - Front Seat Cushion Ventilation Blower Replacement
Courtesy of GENERAL MOTORS COMPANY

Disengage the J-channel retainers from the seat cushion frame.
Disconnect the electrical connectors.

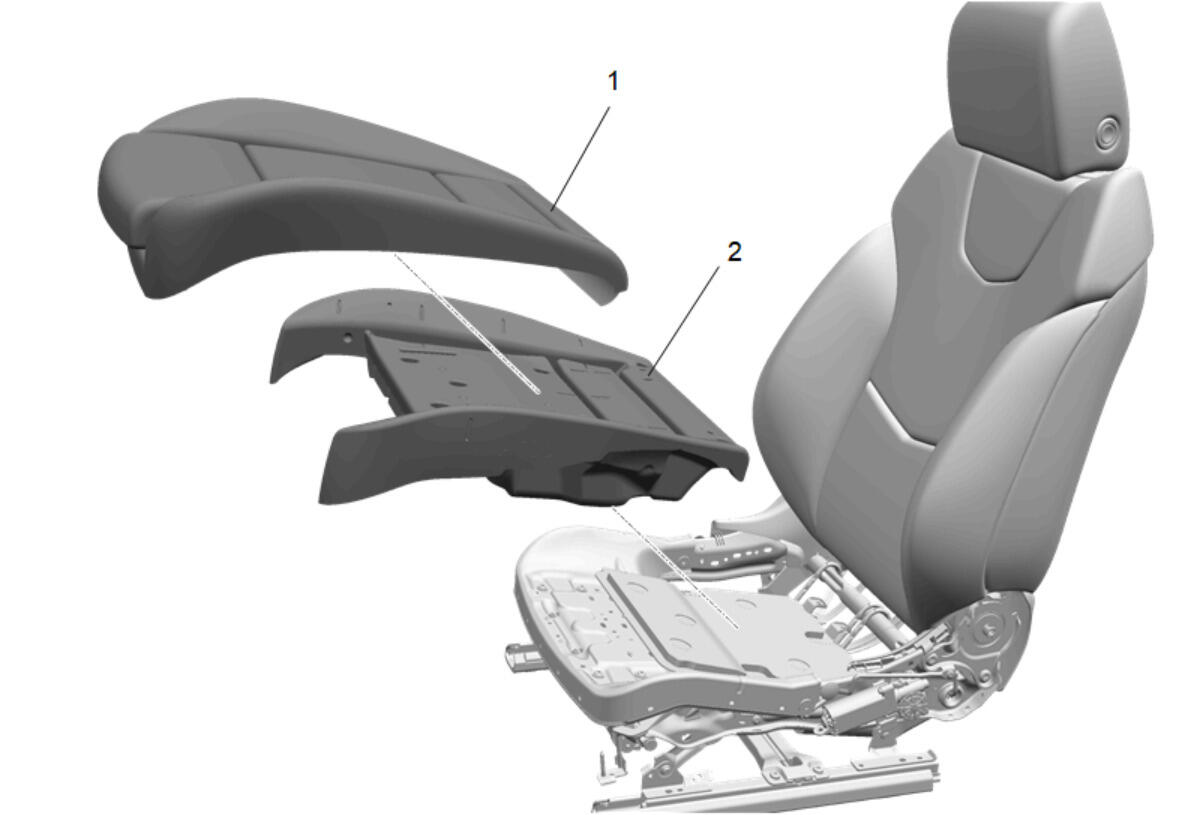

Front Seat Cushion Cover (1) - Remove
Front Seat Cushion Pad (2) - Remove
If replacing the front seat cushion pad (2), DISCARD the front seat cushion heater and front seat vent fan mat, if equipped.
Transfer components as necessary.
