Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Front Seat (2) - Remove - Front Seat Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Seat Cushion Outer Finish Cover (3) - Remove - Front Seat Cushion Outer Finish Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Seat Inner Adjuster Front Finish Cover (2) - Remove - Front Seat Inner Adjuster Front Finish Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Driver or Passenger Seat Head Restraint (3) - Remove - Front Seat Head Restraint Replacement
Courtesy of GENERAL MOTORS COMPANY

Driver or Passenger Seat Head Restraint Guide (1) - Remove - Front Seat Head Restraint Guide Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Seat Back Cushion Finish Panel (1) - Remove - Front Seat Back Cushion Finish Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Front Seat Back Ventilation Blower (2) Remove - Front Seat Back Ventilation Blower Replacement
Courtesy of GENERAL MOTORS COMPANY

Disengage the j-channel retainers.
Front Seat Outboard Seat Back Airbag Nut (1) - Remove - Front Seat Outboard Seat Back Airbag Replacement
Courtesy of GENERAL MOTORS COMPANY

Disconnect all electrical connectors.

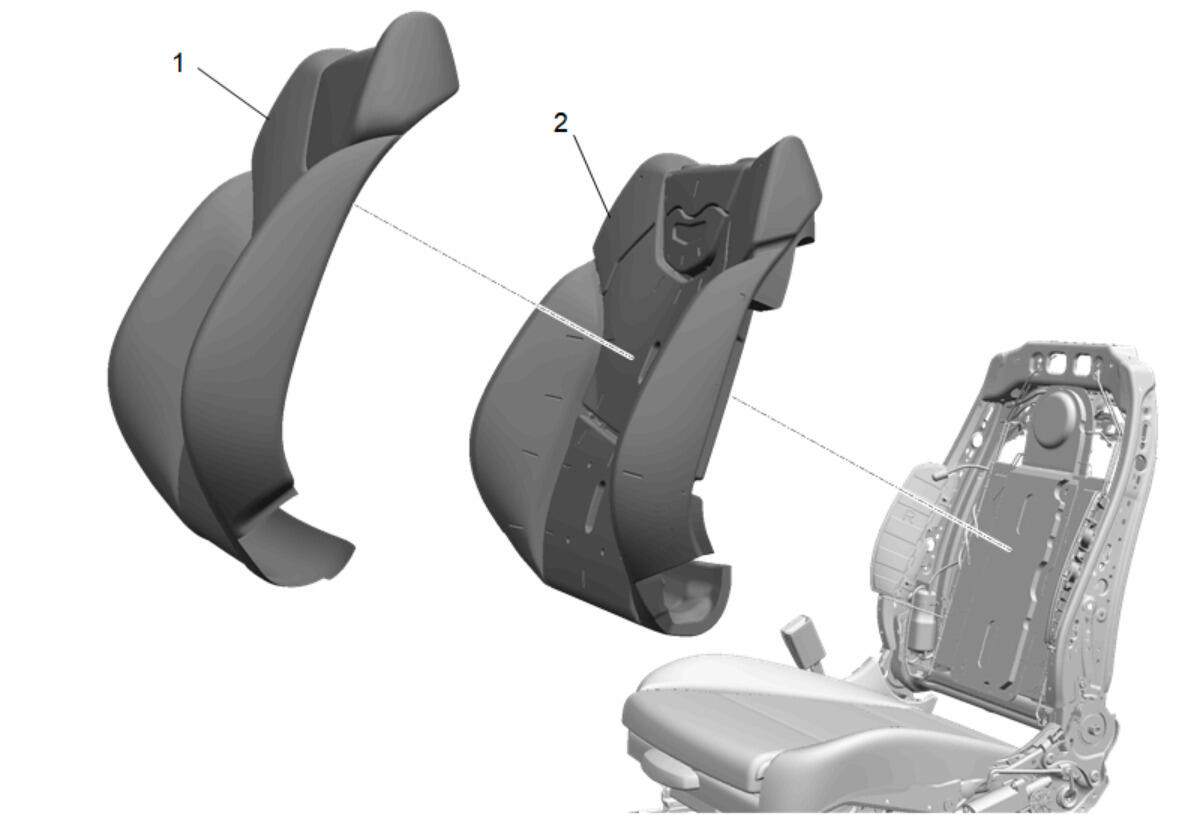

Front Seat Back Cover (1) - Remove
Front Seat Back Pad (2) - Remove
If replacing the front seat back pad (2), DISCARD the front seat back heater and front seat back vent fan mat, if equipped.
Transfer components as necessary.
