Underbody Front Air Deflector Replacement - Right Side
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

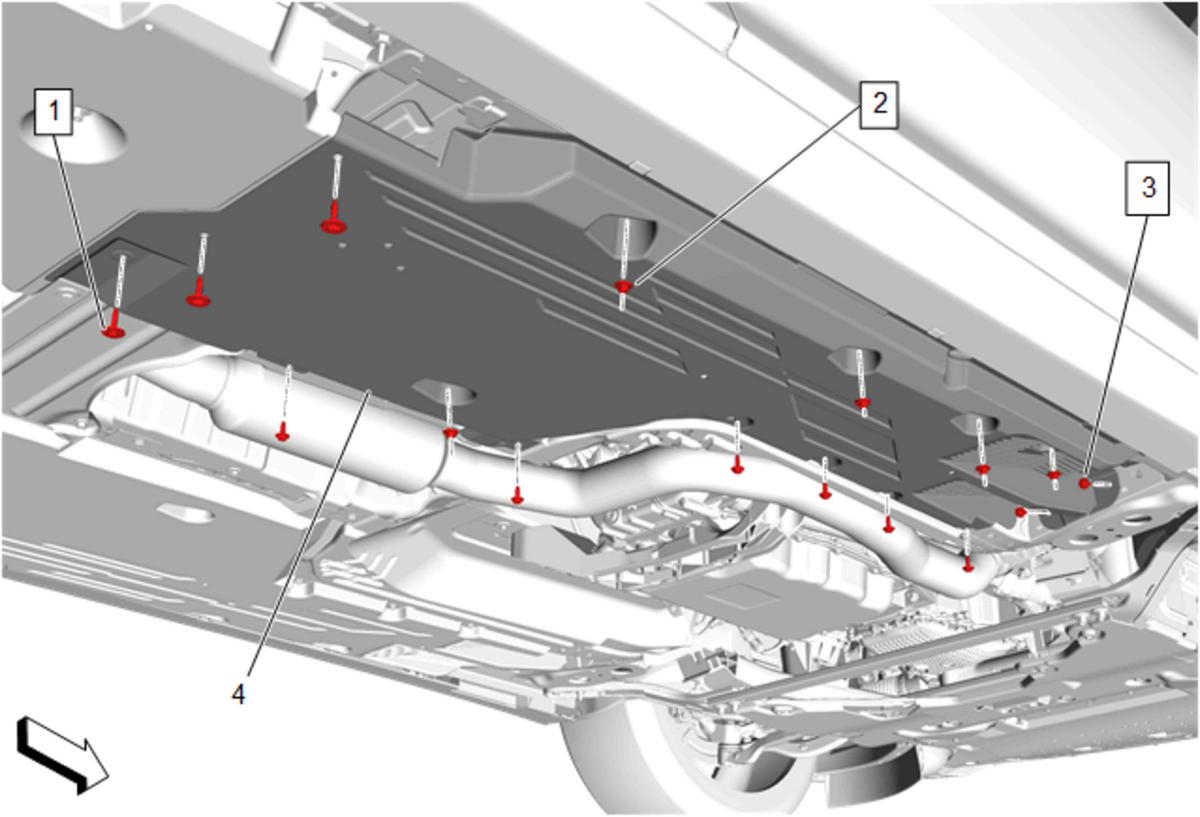

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Underbody Front Air Deflector Bolt [3x]
CAUTION:
Refer to Fastener Caution Tighten 5 N.m (44 lb in) |
| 2 | Underbody Front Air Deflector Nut [5x] Tighten 5 N.m (44 lb in) |
| 3 | Underbody Front Air Deflector Bolt [8x] Tighten 5 N.m (44 lb in) |
| 4 | Underbody Front Air Deflector |
