Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left rear tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Rear Tire Front Air Deflector (2) - Remove - Rear Tire Front Air Deflector Replacement

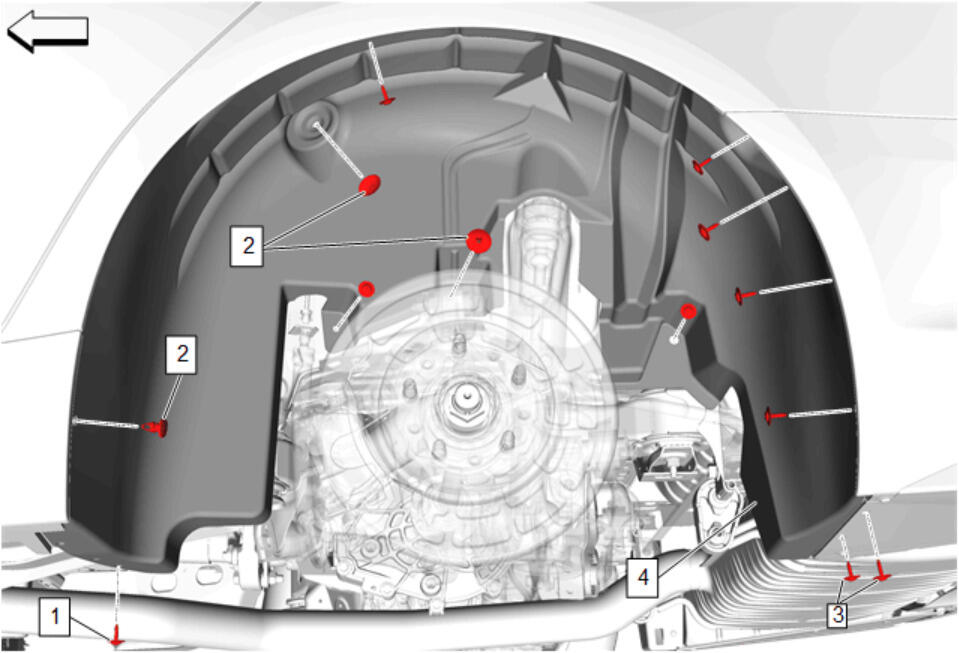

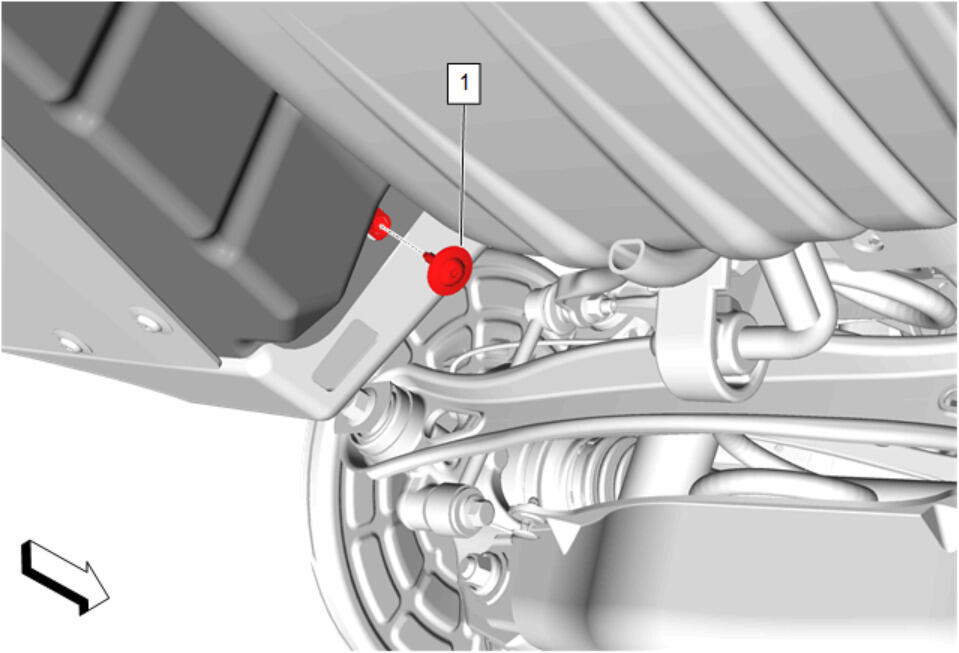

Rear Wheelhouse Liner Bolt (1) - Remove
Rear Wheelhouse Liner Bolt (1) - Remove [8x]
- Rear Wheelhouse Liner Retainer (2) - Remove [3x]
- Rear Bumper Fascia Bolt (3) - Remove [2x]
- Rear Wheelhouse Liner (4) - Remove
