Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5668907Courtesy of GENERAL MOTORS COMPANY

    Install the differential carrier assembly (1) to the rear suspension cradle (2).

  2. GM5668908Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install and tighten the two differential carrier front bolts (1) and nuts (2). Differential Carrier Assembly Replacement , or Differential Carrier Assembly Replacement (G96)

  3. GM5668911Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    Install the NEW differential carrier rear bolt and washer (1) and tighten. Differential Carrier Assembly Replacement , or Differential Carrier Assembly Replacement (G96)

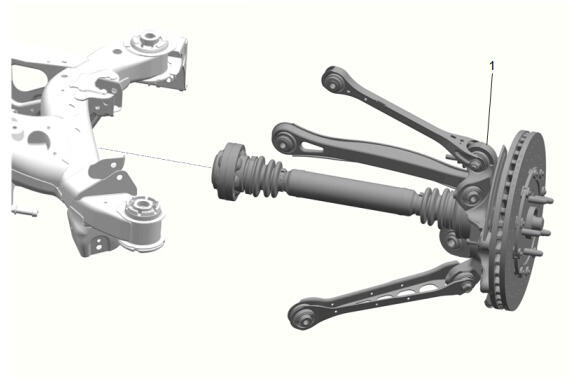

  4. GM5896438Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the following components on the left and right sides as assemblies (1) :

    • Rear Suspension Knuckle
    • Rear Suspension Lower Trailing Link
    • Rear Suspension Upper Control Arm
    • Rear Suspension Adjust Link
    • Rear Brake Rotor
    • Rear Wheel Drive Shaft
  5. GM5668910Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The rear wheel drive shaft universal joint retainer (1) and washers (2) are serviced as a rear wheel drive shaft universal joint retainer kit consisting of 2 bolts and 1 washer.

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  6. Install 3 NEW left side wheel drive shaft flange washers (2).
  7. Install and tighten the 6 NEW left side rear wheel drive shaft universal joint retainers in a crisscross pattern. Rear Wheel Drive Shaft Replacement - Left Side (without LT4)
  8. GM5668913Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The rear wheel drive shaft universal joint retainer (1) and washers (2) are serviced as a rear wheel drive shaft universal joint retainer kit consisting of 2 bolts and 1 washer.

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  9. Install 3 NEW right side wheel drive shaft flange washers (2).
  10. Install and tighten the 6 NEW right side rear wheel drive shaft universal joint retainers in a crisscross pattern. Rear Wheel Drive Shaft Replacement - Right Side (without LT4)
  11. GM5668917Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Suspension Upper Control Arm - Left Side and Right Side (3) - Reposition [2x]

  12. Rear Suspension Upper Control Arm Inner Bolt - Left Side and Right Side (1) - Install NEW [2x]
  13. Rear Suspension Upper Control Arm Inner Nut - Left Side and Right Side (2) - Install and tighten [2x]

    - Rear Suspension Upper Control Arm Replacement

  14. GM5668912Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Suspension Lower Trailing Link - Left Side and Right Side (3) - Reposition [2x]

  15. Rear Suspension Trailing Arm Bolt - Left Side and Right Side (2) - Install NEW [2x]
  16. Rear Suspension Trailing Arm Nut - Left Side and Right Side (1) - Install and tighten [2x] - Rear Suspension Lower Trailing Link Replacement

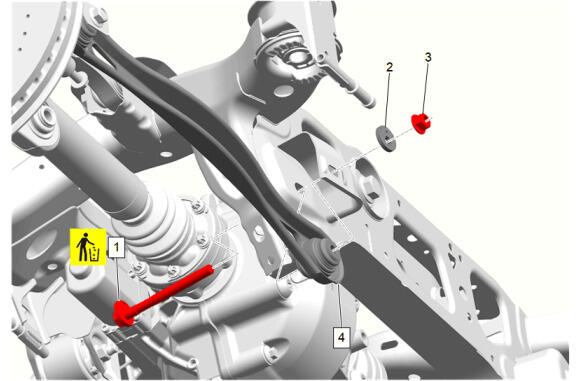

  17. GM5896824Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Suspension Adjust Link - Left Side and Right Side (4) - Reposition [2x]

  18. Rear Suspension Adjust Link Bolt - Left Side and Right Side (1) - Install NEW [2x]
  19. Rear Suspension Adjust Link Washer - Left Side and Right Side (2) - Install [2x]
    20. NOTE:

    The final torque on the rear suspension link inner nut (3) is to be applied during the rear toe setting procedure.

  20. Rear Suspension Link Inner Nut - Left Side and Right Side (3) - Install and hand tighten [2x]
  21. GM5668981Courtesy of GENERAL MOTORS COMPANY

    Install the rear stabilizer shaft (1) with the rear stabilizer shaft links attached.

  22. GM5668916Courtesy of GENERAL MOTORS COMPANY

    Rear Stabilizer Shaft Clamp (3) - Install [2x]

  23. Rear Stabilizer Shaft Clamp Bolt (2) - Install and tighten [3x] - Stabilizer Shaft Replacement
  24. Rear Stabilizer Shaft Clamp Stud (1) - Install and tighten

    - Stabilizer Shaft Replacement

  25. Rear Stabilizer Shaft Link Bolt (4) - Install and tighten [2x] - Stabilizer Shaft Link Replacement , or Stabilizer Shaft Link Replacement
  26. GM5668915Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Cradle (1) - Install - Rear Suspension Cradle Removal and Installation (Non Blackwing)
