Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

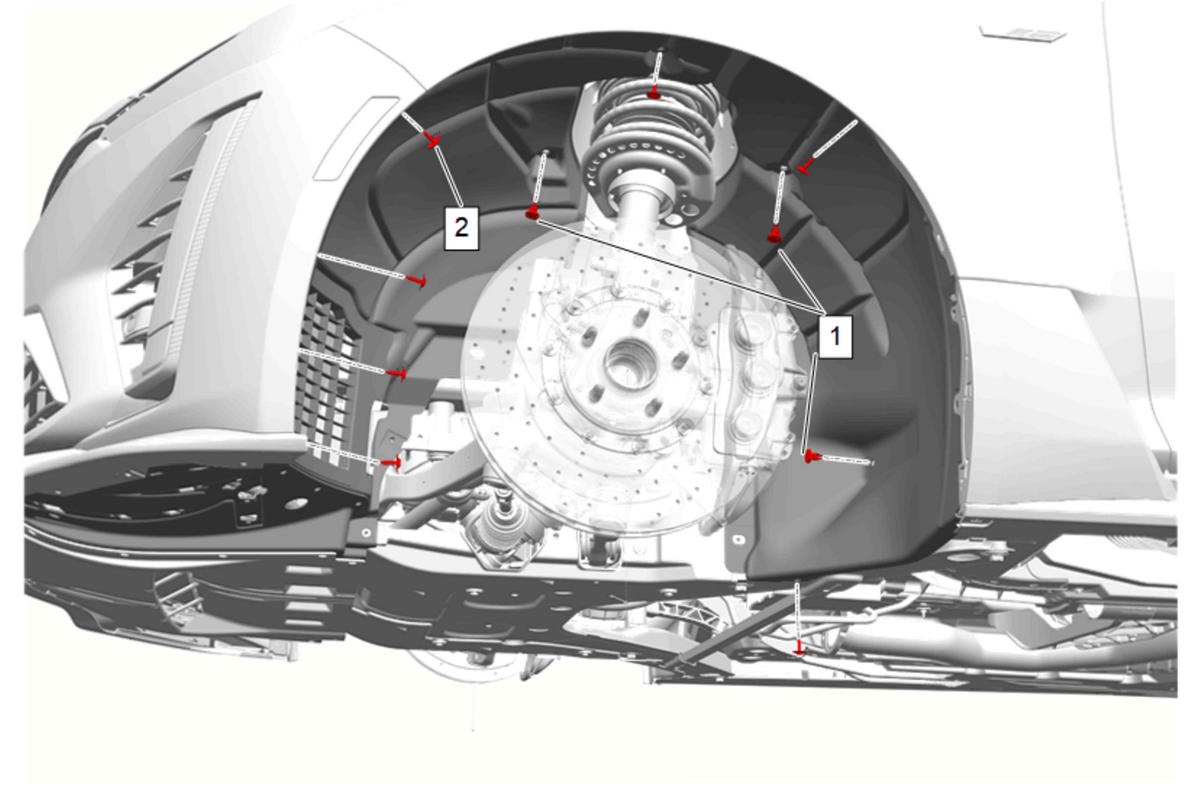

Front Wheelhouse Liner (1) - Install
- CAUTION:
Refer to Fastener Caution
Front Wheelhouse Liner Bolt (2) - Install and tighten [7x] 2.5 N.m (22 lb in)
- Front Wheelhouse Liner Retainer (1) - Install [3x]
Engine Front Splash Shield (3) - Install - Engine Front Splash Shield Replacement (RWD)
Front Wheelhouse Liner Bolt (2) - Install and tighten [17x] 2.5 N.m (22 lb in)

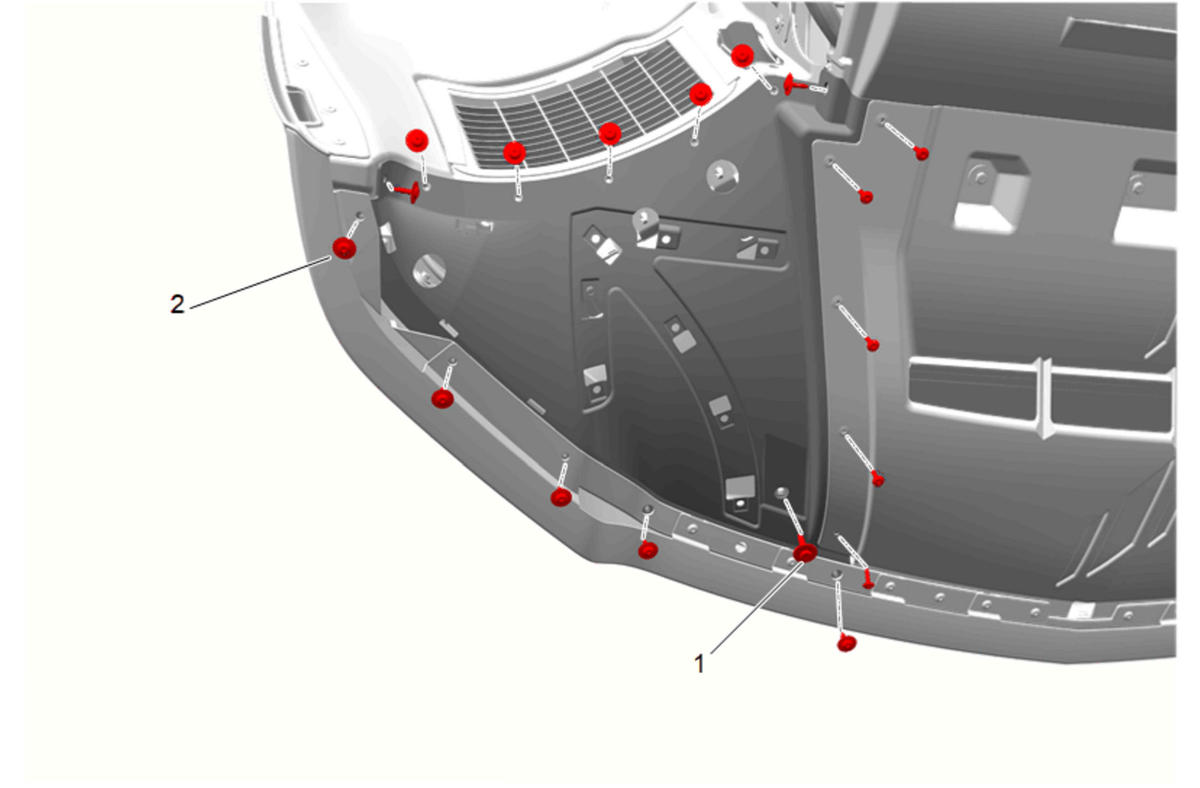

- Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten to 9 N.m (80 lb in)
- Rocker Panel Protector (2) - Install - Rocker Panel Protector Replacement (Blackwing)
- Front Bumper Fascia Air Deflector (2) - Install - Front Bumper Fascia Air Deflector Replacement - Outer
- Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
