Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

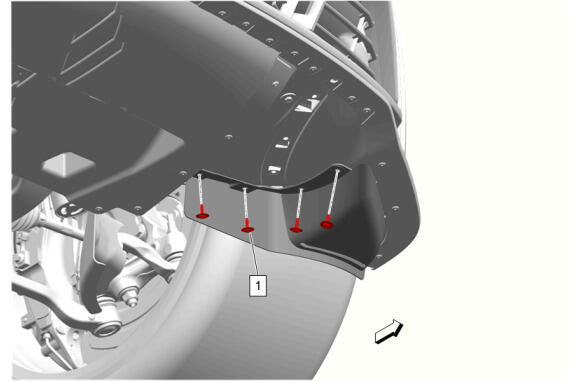

  2. GM5876907Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Air Deflector Bolt (1) - Remove [4x]

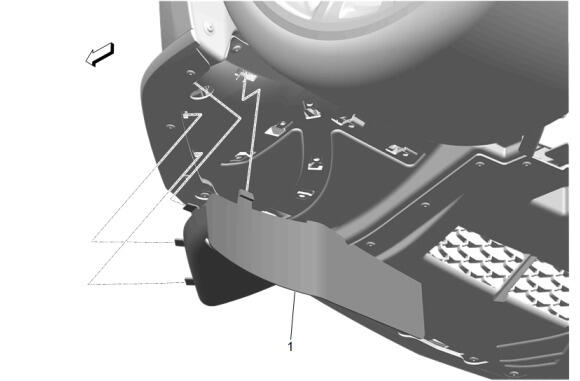

  3. GM5876913Courtesy of GENERAL MOTORS COMPANY

    Front Tire Front Air Deflector (1) - Remove
