Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

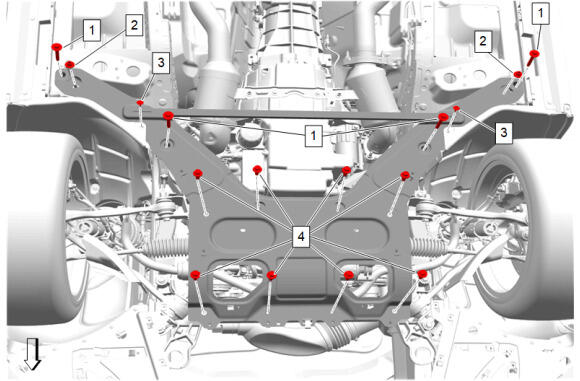

Front Cradle Shear Plate (1) - Install
- CAUTION:
Refer to Fastener Caution .
Front Crossmember Brace Bolt (4) - Install and tighten [8x] 50 N.m (37 lb ft)
- Front Wheelhouse Liner Bolt (3) - Install and tighten [2x] 2.5 N.m (22 lb in)
- Front Cradle Shear Plate Nut (2) - Install and tighten [2x] 50 N.m (37 lb ft)
- Front Cradle Shear Plate Bolt (1) - Install and tighten [4x] 50 N.m (37 lb ft)
Front Bumper Fascia Center Air Deflector (1) - Install - Front Bumper Fascia Center Air Deflector Replacement
- Remove the support and lower the vehicle.
