Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

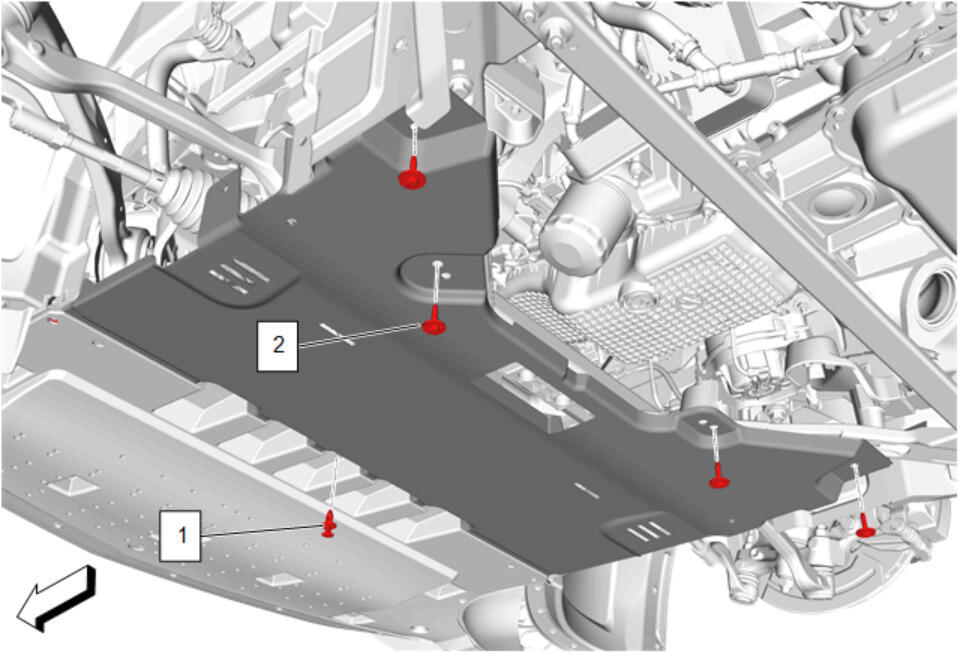

Front Compartment Air Deflector (1) - Install

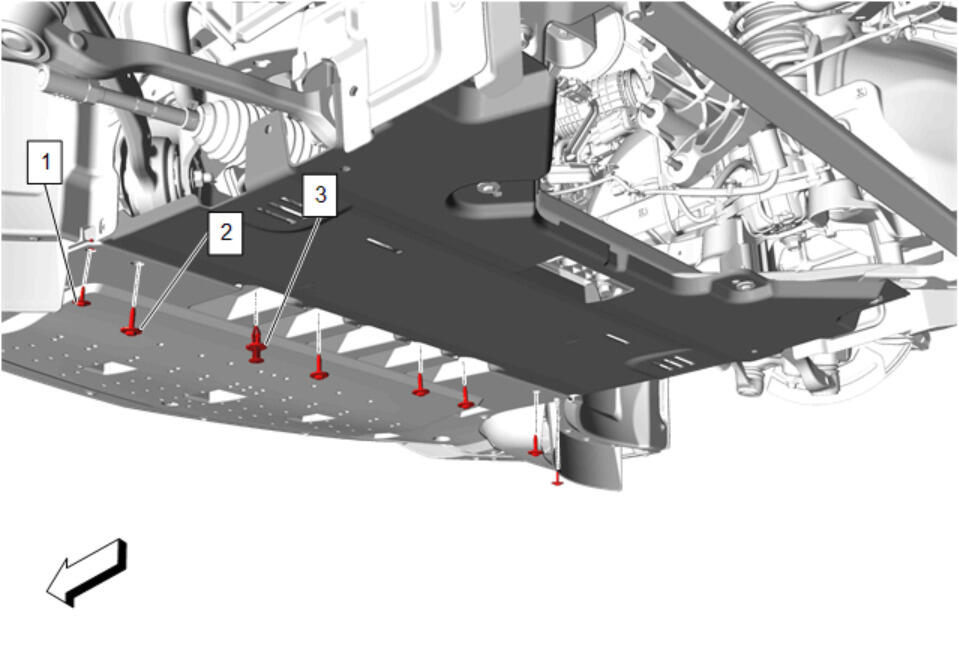

Retainer (1) - Install
- Front Compartment Air Deflector Bolt (2) - Install and tighten [4x] 5 N.m (44 lb in)

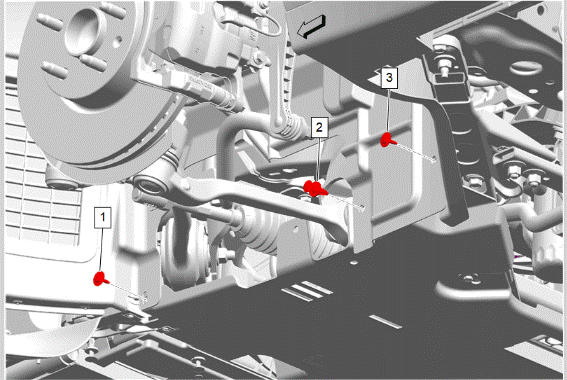

- NOTE:
Left side shown, right side similar.
Engine Front Splash Shield Bolt - Left Side and Right Side (3) - Install and tighten [2x] - Engine Front Splash Shield Replacement (RWD)
- Retainer - Left Side and Right Side (2) - Install [2x]
- Front Wheelhouse Liner Bolt - Left Side and Right Side (1) - Install and tighten [2x] - Front Wheelhouse Liner Replacement
Retainer (3) - Install
- Front Bumper Fascia Center Air Deflector Bolt (2) - Install [5x] - Front Bumper Fascia Center Air Deflector Replacement
- Front Bumper Fascia Center Air Deflector Screw (1) - Install [2x] - Front Bumper Fascia Center Air Deflector Replacement
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution
