Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

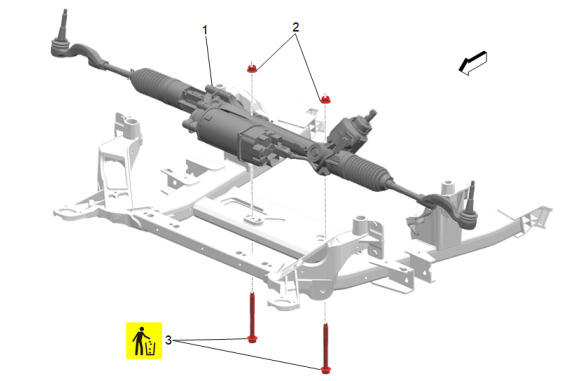

  1. GM6074074Courtesy of GENERAL MOTORS COMPANY

    Electric Belt Drive Rack and Pinion Steering Gear (1) - Install

    2. CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

  2. Steering Gear Bolt (3) - Install NEW [2x]
  3. Steering Gear Nut (2) - Install and hand tighten [2x]
    4. CAUTION:

    Refer to Fastener Caution

  4. Steering Gear Bolt (3) - Tighten [2x] - Electric Belt Drive Rack and Pinion Steering Gear Replacement (AWD)

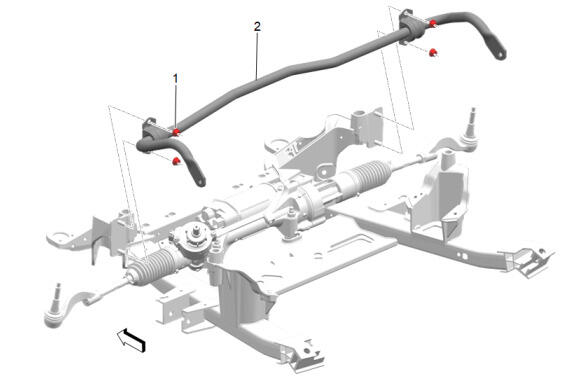

  5. GM6074073Courtesy of GENERAL MOTORS COMPANY

    Front Stabilizer Shaft (2) - Install

  6. Front Stabilizer Shaft Insulator Clamp Nut (1) - Install and tighten [4x] - Stabilizer Shaft Replacement (AWD)

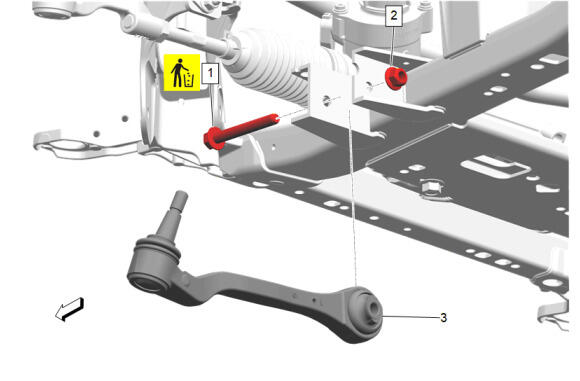

  7. GM6074066Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Lower Control Rear Link - Left Side and Right Side (3) - Install [2x]

    8. CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

  8. Front Lower Control Arm Rear Bolt - Left Side and Right Side (1) - Install NEW [2x]
  9. Front Lower Control Arm Rear Nut - Left Side and Right Side (2) - Install and hand tighten [2x]
  10. Front Lower Control Arm Rear Bolt - Left Side and Right Side (1) - Tighten [2x] - Front Lower Control Rear Link Replacement (AWD)

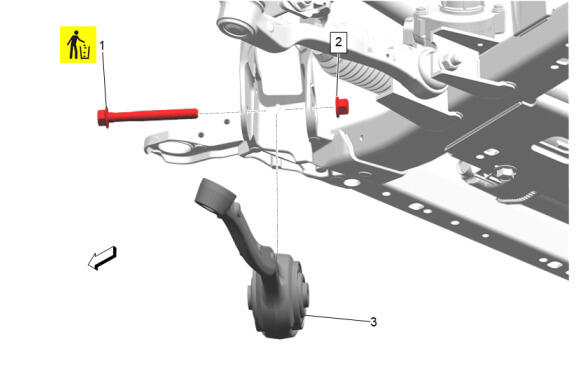

  11. GM6074055Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Lower Control Front Link - Left Side and Right Side (3) - Install [2x]

    12. CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

  12. Front Lower Control Arm Front Bolt - Left Side and Right Side (1) - Install NEW [2x]
  13. Front Lower Control Arm Front Nut - Left Side and Right Side (2) - Install and hand tighten [2x]
  14. Front Lower Control Arm Front Bolt - Left Side and Right Side (1) - Tighten [2x] - Front Lower Control Front Link Replacement (AWD)
  15. GM5335622Courtesy of GENERAL MOTORS COMPANY

    Drivetrain and Front Suspension Cradle (1) - Install - Drivetrain and Front Suspension Cradle Removal and Installation (AWD LGY)
