Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5877926Courtesy of GENERAL MOTORS COMPANY

    Raise the drivetrain and front suspension assembly (1) into position.

  2. GM5877905Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

    Drivetrain and Front Suspension Cradle Front Bolt (1) - Install NEW and tighten [6x]

    1. First Pass: 100 N.m (74 lb ft)
    2. Final Pass: (90 - 105 degrees)
  3. CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

  4. Drivetrain and Front Suspension Cradle Rear Bolt (2) - Install NEW and tighten [2x]
    1. First Pass: 100 N.m (74 lb ft)
    2. Final Pass: (90 - 105 degrees)
  5. Remove the jack from the drivetrain and front suspension cradle.

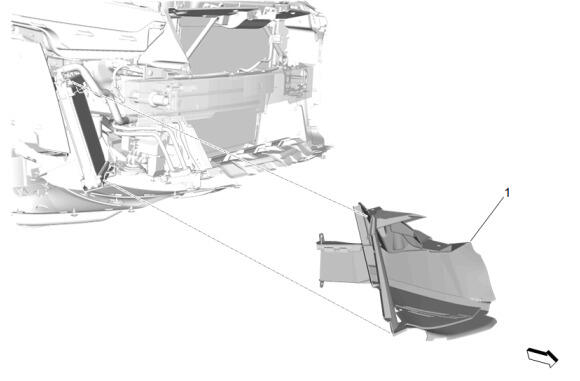

  6. GM5873702Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Front Inlet Duct - Right Side (1) - Install - Auxiliary Radiator Front Inlet Duct Replacement - Right Side (LT4)

  7. GM5872750Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Front Inlet Duct - Left Side (1) - Install - Auxiliary Radiator Front Inlet Duct Replacement - Left Side (LT4)

  8. GM5877980Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Lower Control Rear Link - Left Side and Right Side (2) @ Steering Knuckle - Remove [2x] - Front Lower Control Rear Link Replacement (RWD)

  9. Front Lower Control Front Link - Left Side and Right Side (1) @ Steering Knuckle - Remove [2x] - Front Lower Control Front Link Replacement (RWD)
  10. GM4991551Courtesy of GENERAL MOTORS COMPANY

    Stabilizer Shaft Link (1) @ Stabilizer Shaft - Install - Stabilizer Shaft Link Replacement (FE2) , or Stabilizer Shaft Link Replacement (FE3, FE4)

  11. GM5420204Courtesy of GENERAL MOTORS COMPANY

    Install the steering linkage outer tie rod (1) to the steering knuckle. Steering Linkage Outer Tie Rod Replacement (with Blackwing)

  12. GM5330297Courtesy of GENERAL MOTORS COMPANY

    Intermediate Steering Shaft (1) @ Steering Gear - Install - Intermediate Steering Shaft Replacement (RWD)

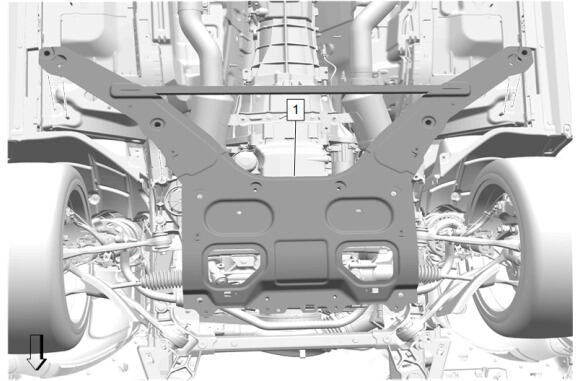

  13. GM5876004Courtesy of GENERAL MOTORS COMPANY

    Front Cradle Shear Plate (1) - Install - Front Cradle Shear Plate Replacement (Blackwing)

  14. GM5864790Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner - Left Side and Right Side (1) - Install [2x] - Front Wheelhouse Liner Replacement (Blackwing)

  15. GM5335537Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut-Right Side (1) - Install - Engine Mount Replacement - Right Side

  16. GM5335541Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut-Left Side (1) - Install - Engine Mount Replacement - Left Side

  17. GM5865860Courtesy of GENERAL MOTORS COMPANY

    EN-51007  Global Engine Support Fixture (1) - Remove - Engine Support Fixture

  18. Remove the wire or strap used to secure the engine coolant fan module radiator assembly to the left and right side radiator upper brackets.
  19. If the front drivetrain and suspension cradle is replaced, measure and adjust the wheel alignment. Wheel Alignment Measurement
