Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation (with Blackwing)
Disconnect all the electrical connectors and reposition the wiring harness as necessary
Courtesy of GENERAL MOTORS COMPANY

Rear Fascia Auxiliary Signal Lamp (2) - Remove - Rear Fascia Auxiliary Signal Lamp Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Combination Lamp- Left Side and Right Side (1) - Remove [2x] - Rear Combination Lamp Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Advanced Parking Assist Alarm Sensor- Left Side and Right Side (1) - Remove [2x] - Advanced Parking Assist Rear Object Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Parking Assist Alarm Sensor (1) - Remove [4x] - Parking Assist Alarm Sensor Replacement - Rear
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Rear Closure Hands Free Lamp (2) - Remove - Rear Closure Hands Free Lamp Replacement
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Rear Closure Hands Free Module (2) - Remove - Rear Closure Hands Free Module Replacement
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Rear Closure Hands Free Sensor (1) - Remove - Rear Closure Hands Free Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

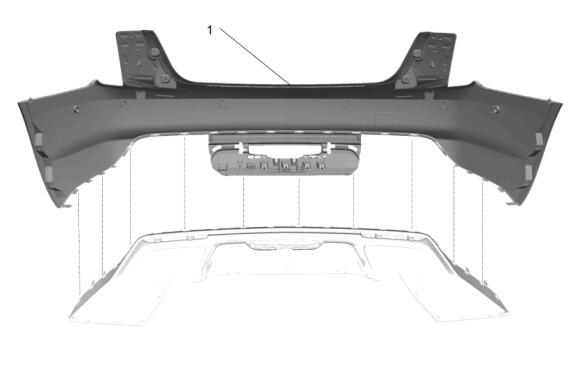

Release the retainer tabs on the rear bumper upper fascia (1) and remove from the lower fascia.
