Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

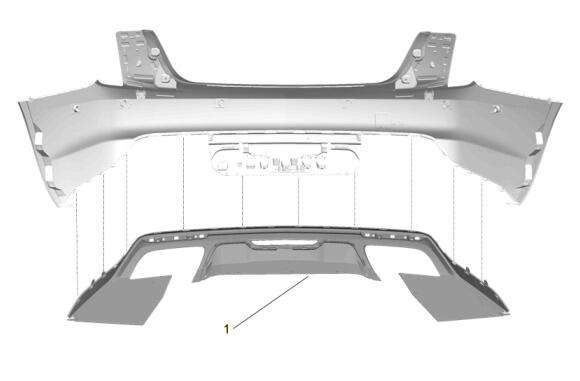

Install the rear bumper lower fascia (1) to the rear bumper upper fascia.
Courtesy of GENERAL MOTORS COMPANY

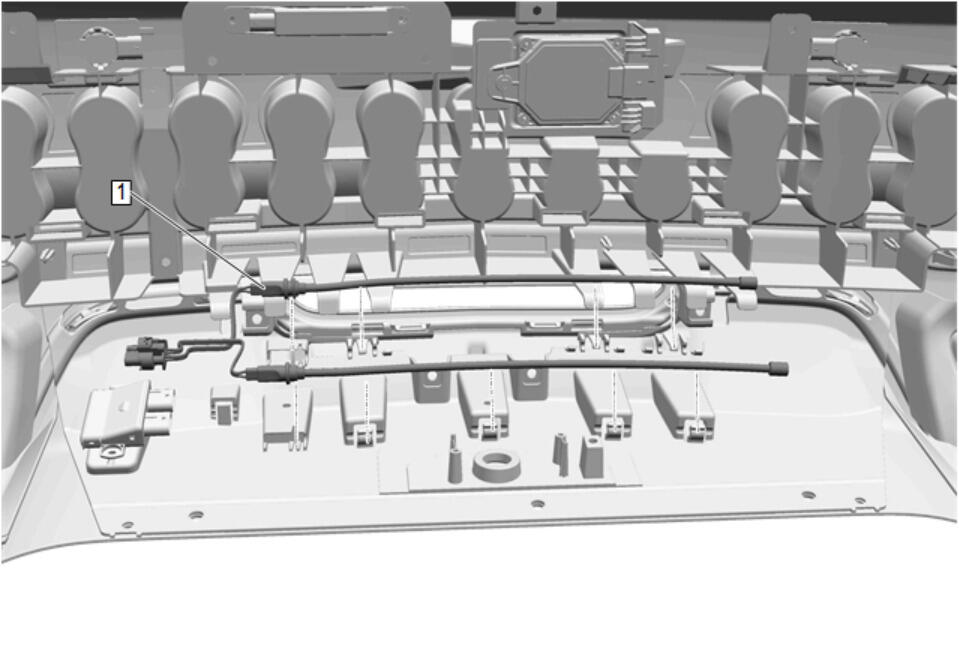

{ If equipped }Rear Closure Hands Free Sensor (1) - Install - Rear Closure Hands Free Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

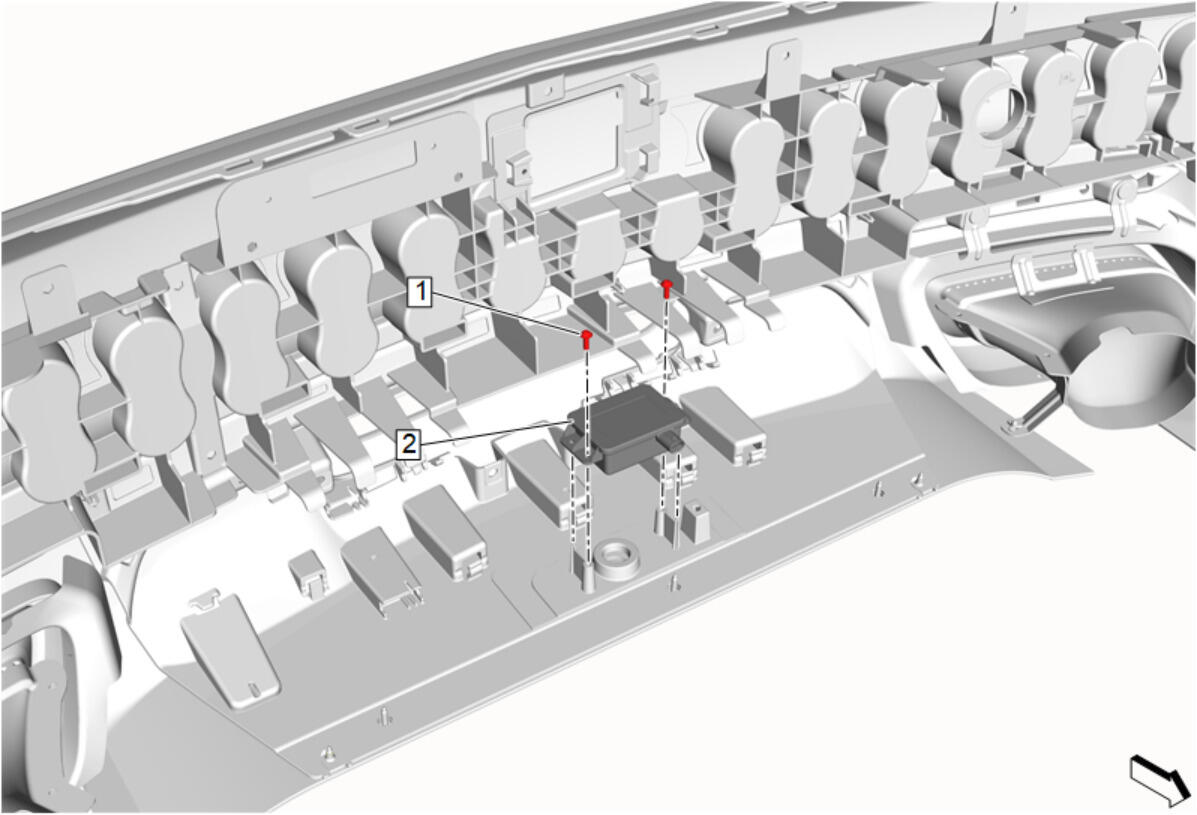

{ If equipped }Rear Closure Hands Free Module (2) - Install - Rear Closure Hands Free Module Replacement
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Rear Closure Hands Free Lamp (2) - Install - Rear Closure Hands Free Lamp Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Combination Lamp- Left Side and Right Side (1) - Install [2x] - Rear Combination Lamp Replacement
Courtesy of GENERAL MOTORS COMPANY

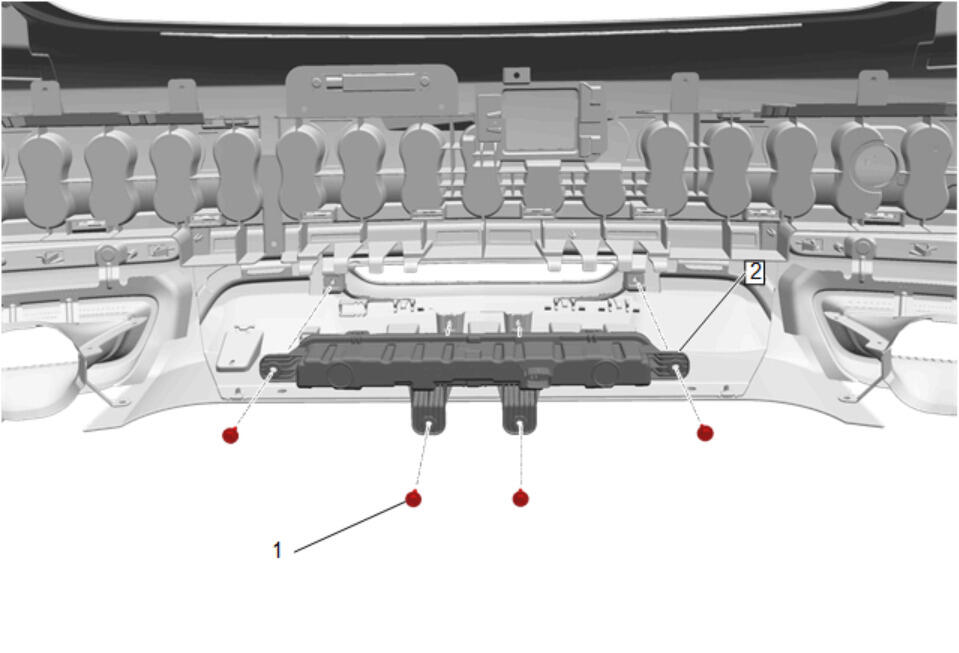

Rear Fascia Auxiliary Signal Lamp (2) - Install - Rear Fascia Auxiliary Signal Lamp Replacement
Install the wiring harness and connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation (with Blackwing)
