Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove enough bolts from the left and right rear wheelhouse liners to gain access to the rear fascia bolts. Rear Wheelhouse Liner Replacement

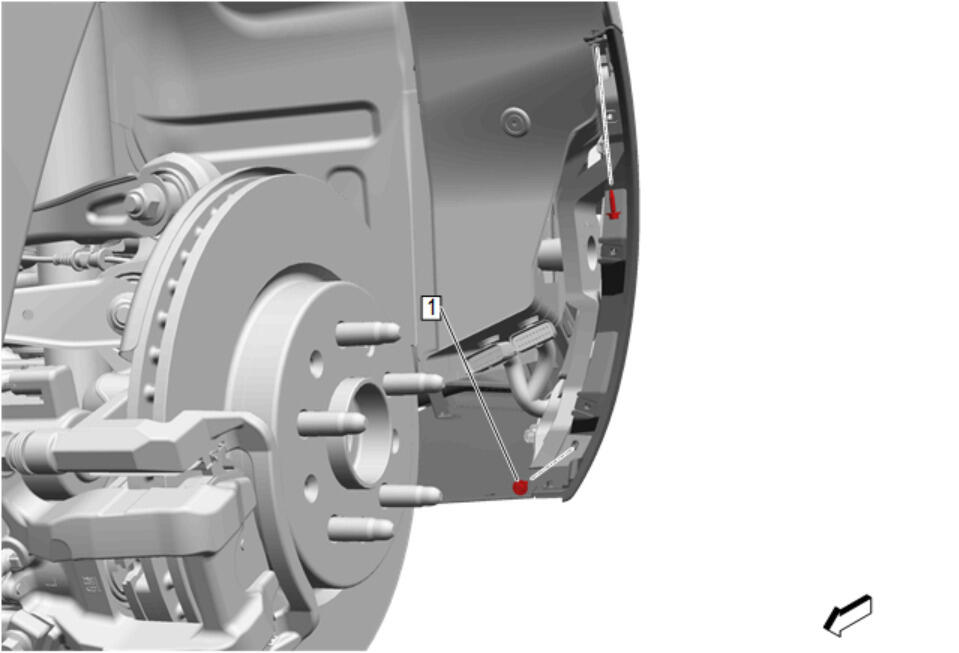

Remove the 2 right side rear fascia bolts (1).
Remove the 2 left side rear fascia bolts (1).

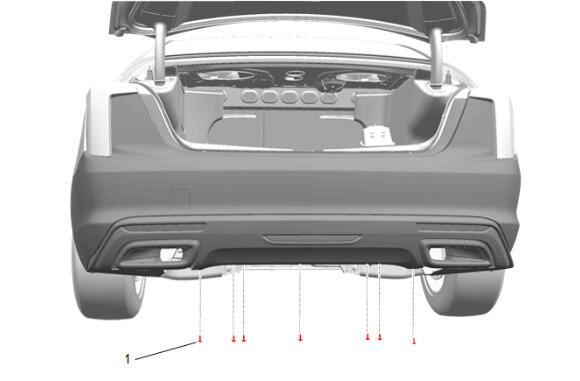

Rear Bumper Fascia Bolt (1) - Remove [7x]
Carefully push a small nylon wedge between the fascia (1) and the fascia guide on the left and right sides. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia.
Release the 3 left and right side rear bumper fascia retainer clips (1) from the rear bumper fascia reinforcement.
Rear Bumper Fascia (1) - Remove
- Disconnect all electrical connectors.
- Transfer components as necessary.
