Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

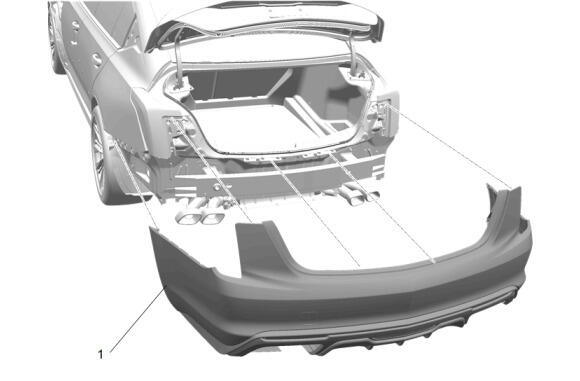

Rear Bumper Fascia (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Secure the 6 left and right side rear bumper fascia retainer clips (1) to the rear bumper fascia reinforcement.
Courtesy of GENERAL MOTORS COMPANY

Install the rear bumper fascia (1) on the left and right side to the rear fascia guides.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Rear Bumper Fascia Bolt (1) - Install and tighten [7x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Wheelhouse Liner- Left Side and Right Side (1) - - Install
Rear Bumper Fascia Bolt- Left Side and Right Side (1) Install and tighten [4x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

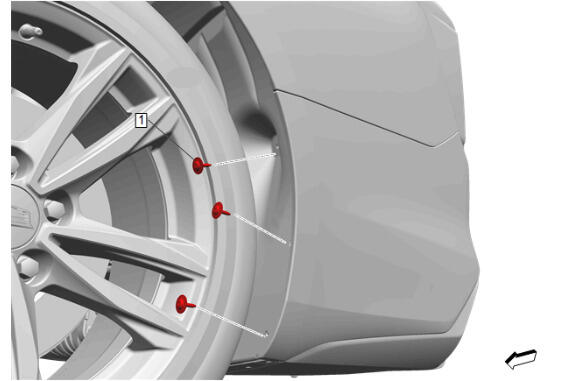

Rear Bumper Fascia Bolt- Left Side and Right Side (1) - Install and tighten [10x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Wheelhouse Liner Bolt- Left Side and Right Side (1) Install [4x] Rear Wheelhouse Liner Replacement
