Rear Bumper Fascia Molding Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

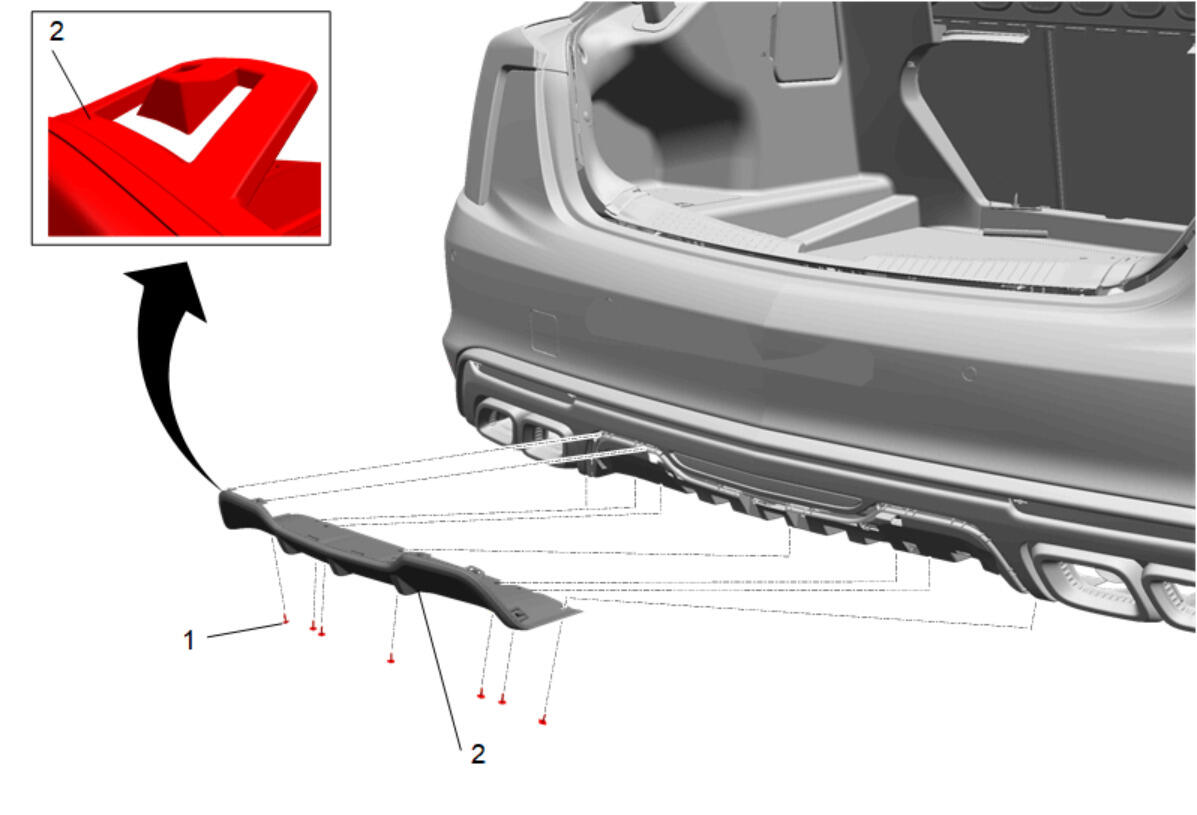

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Rear Bumper Fascia Molding Bolt [7x]
Tighten
2.5 N.m (22 lb in) |
| 2 |
Rear Bumper Fascia Molding
Procedure
Using the appropriate tool, release the 8 retaining tabs. |
