Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5867821Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (with Blackwing)

  2. Reposition the wiring harness.
  3. GM5868250Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Lower Fascia (3) - Remove - Front Bumper Lower Fascia Replacement (with Blackwing)

  4. GM5285788Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Energy Absorber (1) - Remove - Front Bumper Fascia Energy Absorber Replacement

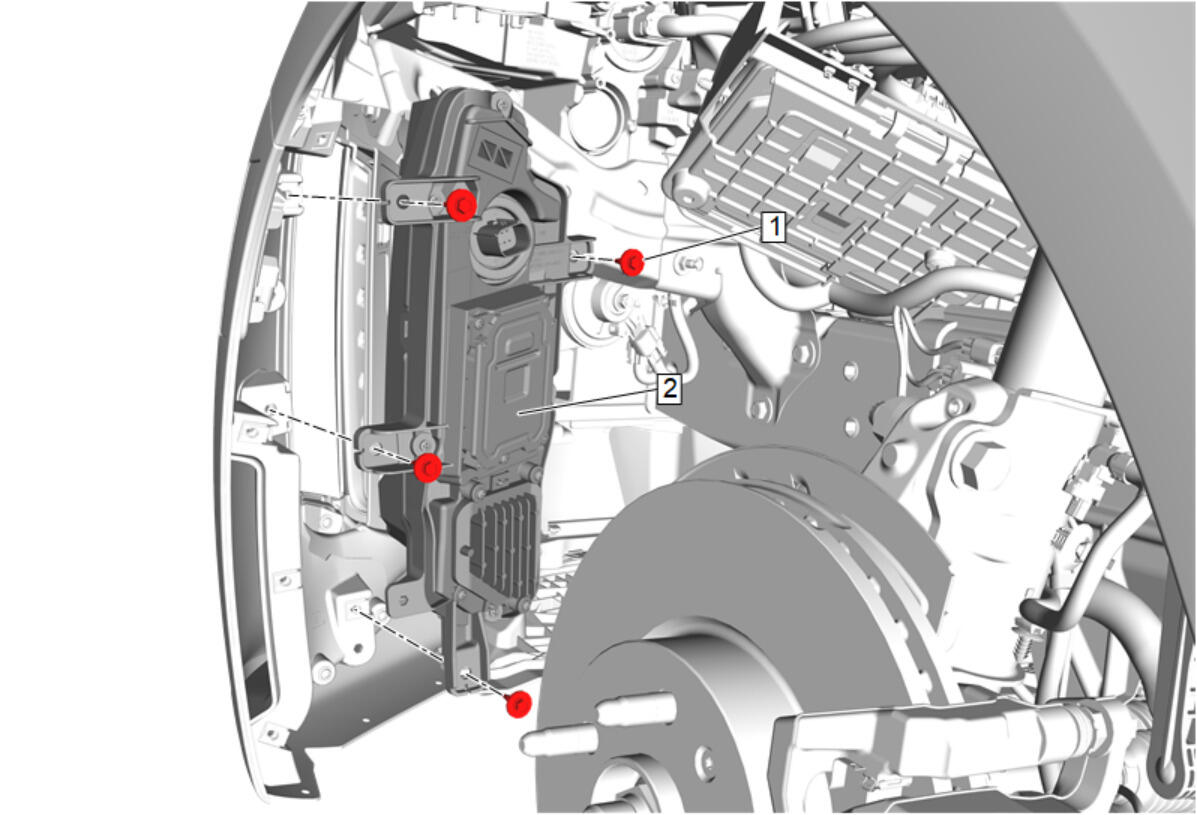

  5. GM5310891Courtesy of GENERAL MOTORS COMPANY

    Daytime Running Lamp- Left Side and Right Side (2) - Remove [2x] - Daytime Running Lamp Replacement

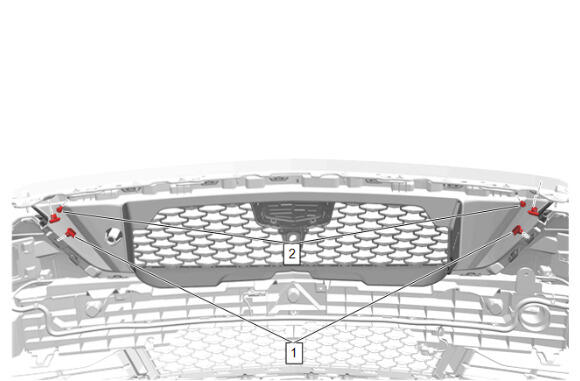

  6. GM5865092Courtesy of GENERAL MOTORS COMPANY

    Front Grille (2) - Remove - Front Grille Replacement (Blackwing)

  7. GM5420106Courtesy of GENERAL MOTORS COMPANY

    Front Short Range Radar Sensor (2) - Remove [2x] - Front Short Range Radar Sensor Replacement

  8. GM5295194Courtesy of GENERAL MOTORS COMPANY

    Front Parking Assist Alarm Sensor (1) - Remove [4x] - Parking Assist Alarm Sensor Replacement - Front

  9. GM5299494Courtesy of GENERAL MOTORS COMPANY

    Advanced Parking Assist Front Object Sensor - Left Side and Right Side (1) - Remove [2x] - Advanced Parking Assist Front Object Sensor Replacement

  10. GM5409385Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Front Bumper Shutter Frame (2) - Remove - Front Bumper Shutter Frame Replacement

  11. GM5418098Courtesy of GENERAL MOTORS COMPANY

    Front Side Marker Lamp- Left Side and Right Side (1) Remove [2x] - Front Side Marker Lamp Replacement

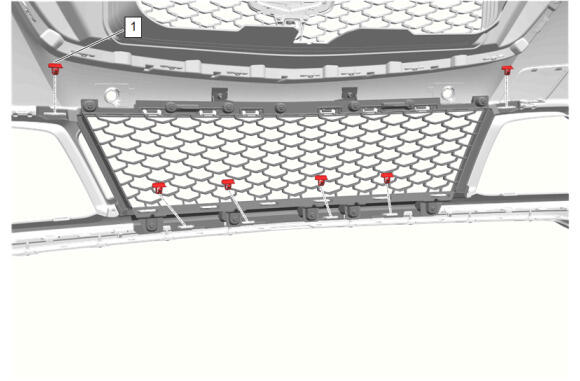

  12. GM5863848Courtesy of GENERAL MOTORS COMPANY

    Front Lower Grille (2) - Remove - Front Lower Grille Replacement (Blackwing)

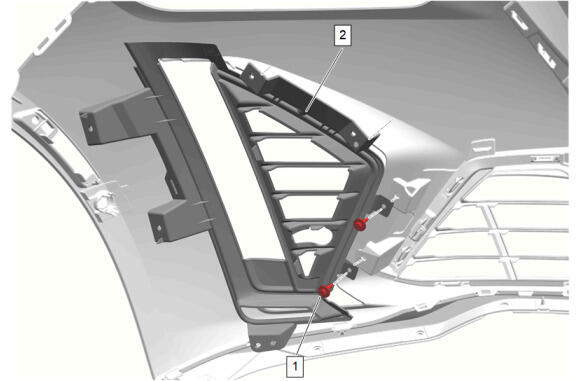

  13. GM5865130Courtesy of GENERAL MOTORS COMPANY

    Front Outer Grille- Upper- Left Side and Right Side (2) Remove [2x] - Front Outer Grille Replacement (Upper)Front Outer Grille Replacement (Lower)

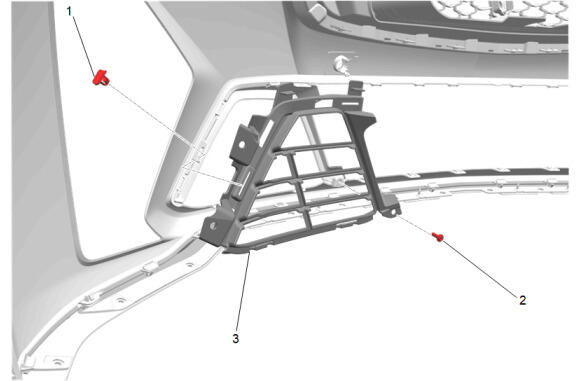

  14. GM5865183Courtesy of GENERAL MOTORS COMPANY

    Front Outer Grille- Lower- Left Side and Right Side (2) Remove [2x] - Front Outer Grille Replacement (Upper)Front Outer Grille Replacement (Lower)

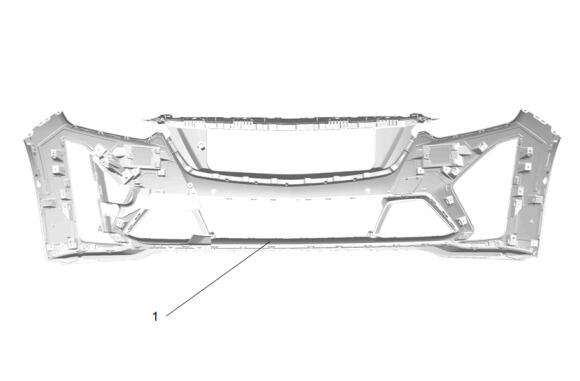

  15. GM5868292Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Upper Fascia (1)
